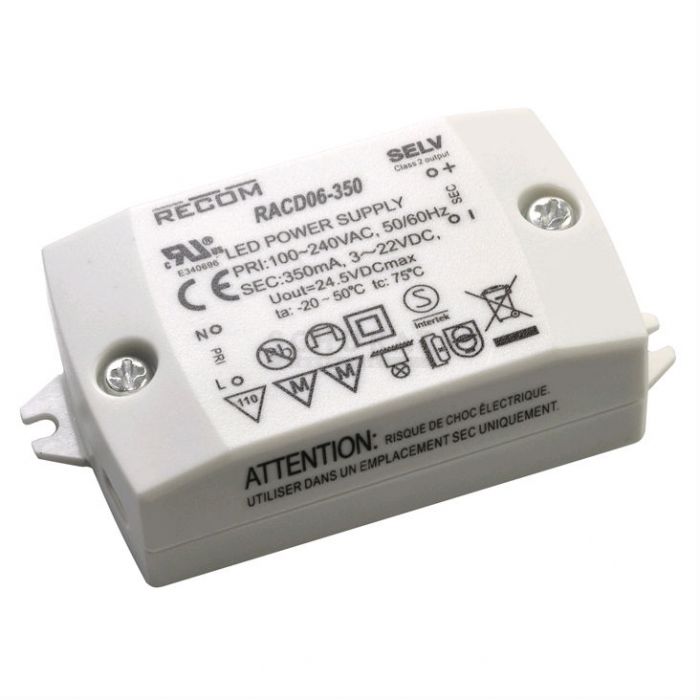

LED DRIVER 2.5-24VDC 350MA 6W
€ 21,95
€ 18,14
Artikelnummer
RACD06-350
- ArtikelnummerRACD06-350
- MerkRECOM
- Aantal 5+ € 19,75 € 16,32
Features
| • Universal input • Constant current • Not dimmable • Plastic housing IP20 • Overload protection by current limiting • Protected against short circuit, overload, overvoltage • For LED and lighting applications • Protection class II • Safety standards: UL 8750; IEC 61347-1; IEC 61347-2-13; EN 61347-1; EN 61347-2-13 • EMC standards: EN 55015 • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 10A |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -20...+40°C |
| Dimensions(LxWxH): | 68x35x31mm |
| Weight: | 34g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | IRN | h |
| [V] | [mA] | [W] | [Ap-p] | [%] | |
| RACD06-350 | 2,5...24 | 350 | 6 | 0,2 | 79 |
| RACD06-700 | 2,5...12 | 700 | 6 | 0,2 | 72 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, IRN = Ripple & Noise, h = Typ. Efficiency | |||||
