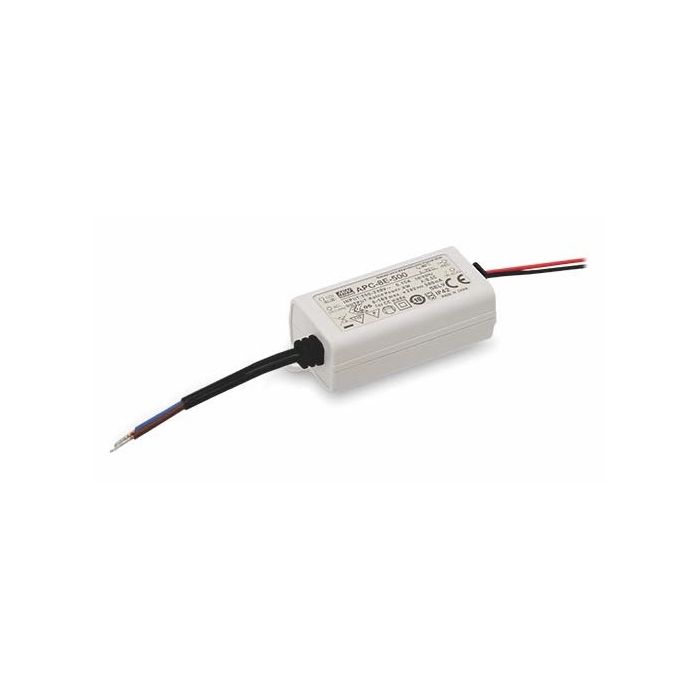

LED DRIVER 16-32VDC 250MA 8W
€ 7,95
€ 6,57
Artikelnummer
APC8E250
- ArtikelnummerAPC8E250
- MerkMEANWELL
- Aantal 5+ € 7,15 € 5,91
Features
| • Universal input • Plastic enclosure IP42 • Protections: short circuit • Suitable for LED lighting and moving sign applications • Constant current |
 |
| Technical Specifications |
|
|
| Input Voltage: | 180...264V AC (47...63Hz) |
| 254...370V DC | |
| Input Inrush Current, Max.: | 70A |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 50g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [mA] | [W] | [mVp-p] | [%] | |
| APC8E250 | 16...32 | 250 | 8 | 350 | 81,5 |
| APC8E350 | 11...23 | 350 | 8,05 | 300 | 80,5 |
| APC8E500 | 8...16 | 500 | 8 | 300 | 79 |
| APC8E700 | 6...11 | 700 | 7,7 | 250 | 77,5 |
| UA = Output Voltage Range, IA = Output Current, PA = Output Power, URN = Ripple & Noise, h = Typ. Efficiency | |||||
|
|||||
| Note |
These power supplies are considered as a component that has to be installed in a final equipment.
