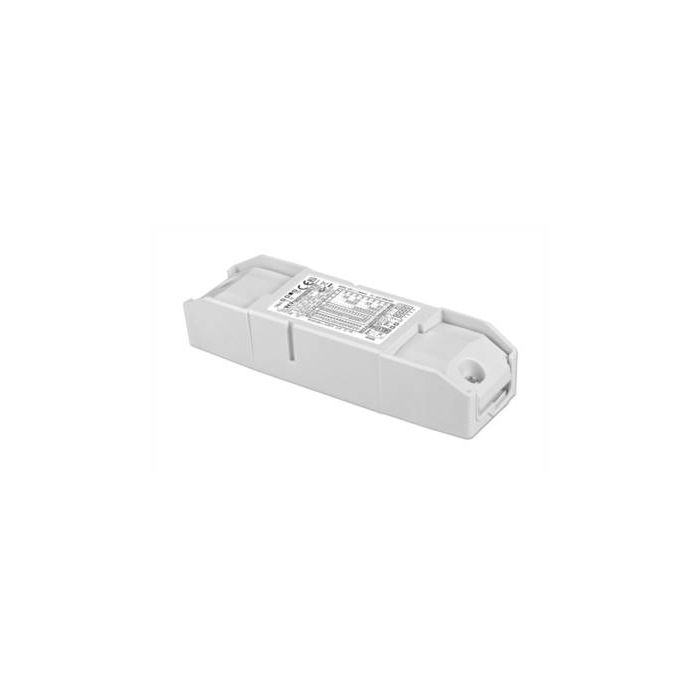

LED DRIVER 10-45VDC 250-1000MA 32W 129,5X97X30MM

Features
• Multipower driver supplied with dip-switch for the selection of
the output current.
• IP20 independent driver, for indoor use (PROFESSIONALE 42).
• Class II protection against electric shock for direct or indirect
contact (PROFESSIONALE 42).
• Driver for built-in use (PROFESSIONALE 42 BI).
• It can be used for lighting equipment in protection class I and II
(PROFESSIONALE 42 BI).
• Active Power Factor Corrector.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on opposite sides
(wire cross-section up to 1,5 mm2 / AWG15).
• Clamping screws on primary and secondary circuits for cables
with diameter: min. 2 mm - max. 11 mm (PROFESSIONALE 42).
• Driver can be secured with slot for screws.
• Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads.
• Thermal protection = C.5.a.
