KVM SWITCH 2 VOUDIG HDMI 8K60HZ DUAL MONITOR

• Conveniently control two PCs: Use one workstation with two monitors, one keyboard, one mouse and multiple USB devices for both computers.
• Highest resolutions up to 8K@60Hz: Supports HDMI 2.1, HDR10, Dolby Vision and enables crystal-clear images for gaming, image editing or presentations.
• Flexible switching without delay: Switch quickly between two PCs via hotkey, button, IR remote control or RS-232 – without reconnecting cables.
• Integrated USB 3.2 hub: Four USB ports plus two hotkey USB ports for flexible use of keyboard, mouse and peripherals – ideal for versatile applications.
• Robust metal housing and plug & play: Easy installation without drivers, high-quality design – perfect for professional and private use.

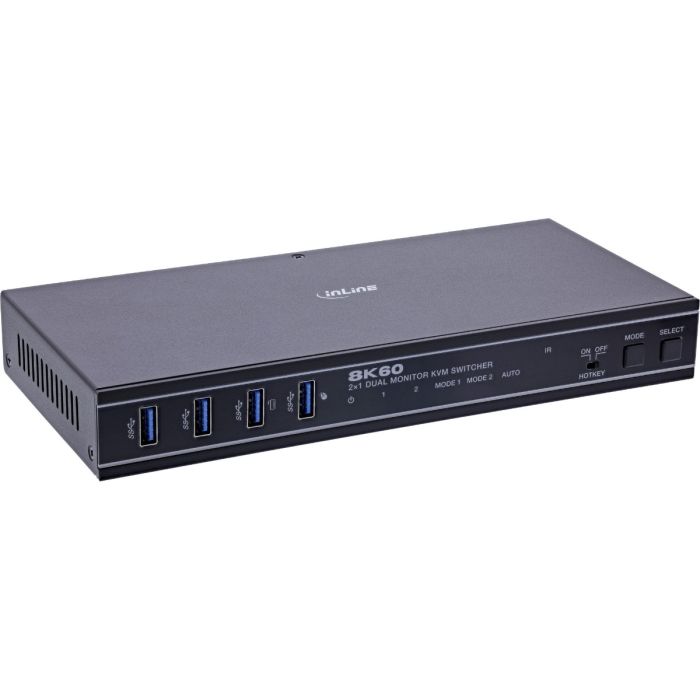

The InLine KVM Switch, 2-port, HDMI 2.1, Dual Monitor, 8K60Hz allows you to control two PCs from a single workstation with two monitors, one keyboard, one mouse and multiple USB devices.

Switching between the two computers is convenient via hotkey, button, IR remote control or RS-232 – without time-consuming cable reconnections. Thanks to HDMI 2.1 technology and a maximum resolution of 8K at 60Hz, you benefit from impressive image quality and smooth display.

The KVM switch supports HDR10, Dolby Vision and other modern video and audio formats – ideal for gaming, graphics editing, presentations or control rooms.

With four USB 3.2 Gen.1 ports and two additional hotkey USB ports, you can conveniently use a keyboard, mouse and other peripheral devices. The robust metal housing, high transmission bandwidth of up to 40 Gb/s and simple plug & play installation make the switch a future-proof solution for private and professional users.

• Inputs:
  – 4 × HDMI (2 per PC, type A, 19-pin)
  – 2 × USB host (USB-B)
• Outputs:
  – 2 × HDMI (type A, 19-pin)
  – 1 × L/R audio output (3.5 mm stereo)
• Video resolutions: up to 8K@60Hz, 4K@120Hz/144Hz, 1080p@240Hz
• Video bandwidth: up to 40 Gb/s
• HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
• Colour depth: 8 / 10 / 12 bits
• Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
• HDMI version: HDMI 2.1
• HDCP version: HDCP 2.3
• Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
• Latency: no video or audio delay
• CEC support: yes
• USB ports:
  – 4 × USB 3.2 Gen.1 (USB-A)
  – 2 × USB 3.2 Gen.1 (USB-A) with hotkey support (switchable to USB 1.1)
• RS-232: 3-pin terminal connection
• IR EXT: 3.5 mm jack socket
• Housing: metal, black
• Dimensions: 220 × 100 × 30 mm
• Weight: 626 g
• Operating temperature: 0–40 °C
• Storage temperature: –20–60 °C
• Humidity: 20–90% (non-condensing)
• ESD protection: ±8 kV air / ±4 kV contact

Recommended cable lengths

• up to 3 m: 8K / 4K@120Hz
• up to 5 m: Ultra HDMI 2.1
• up to 10 m: 1080p with standard HDMI cable

External power supply (power adapter)

• Type: external plug-in power adapter with lock
• Input voltage: 100–240 V AC, 50/60 Hz
• Output voltage: 12.0 V DC
• Output current: max. 1.0 A
• Output power: 12.0 W
• Average operating efficiency: 85.23%
• Efficiency at low load (10%): 78.53%
• Power consumption at zero load: 0.09 W

Scope of delivery

• 1 × InLine® KVM switch, 2-port, HDMI, 8K60Hz, dual monitor
• 1 × IR remote control
• 1 × IR receiver cable (1.5 m, 38 kHz)
• 2 × USB cable (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
• 4 × HDMI cables (1.5 m each, plug/plug)
• 1 × 12 V/1 A power supply with lock
• 1 × 3-pin terminal connection plug
• 2 × mounting brackets
• 4 × screws (KM3×4)
• 1 × user manual in German/English
