REED KONTAKT 14X2,5MM 1XWISSEL 175V 0,5A 10W AW15-20

Description

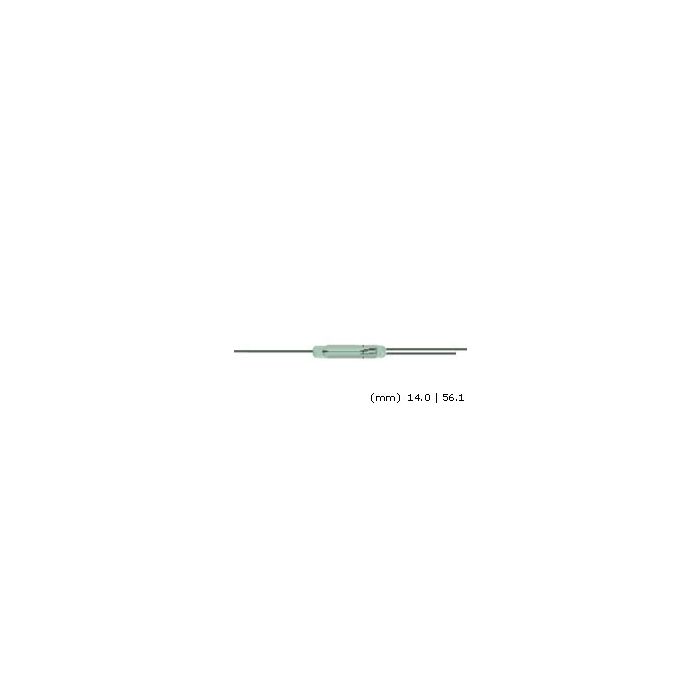

Glass length of 14.0 mm and diameter of 2.54 mm
Single pole double throw Form C (SPDT Switch)
Also used as a Form B-Normally closed reed switch

Switching Voltage, Max., [V]: 175
Switching Current, Max. (0,5V/10mA)[A]: 0,5
RK = Contact Resistance, Max. [mW]: 150
Switching Time incl. Bounce [ms]: 0,7
Reset Time [ms]: 1,5
Switching Capacity, Max.[W]: 10
Carry Current, Max. [A]: 1,0
Insulation Resistance [W]: 10/9
Breakdown Voltage, Min. [Vdc]: 200
Initial Excitation [AW]: 15...20
