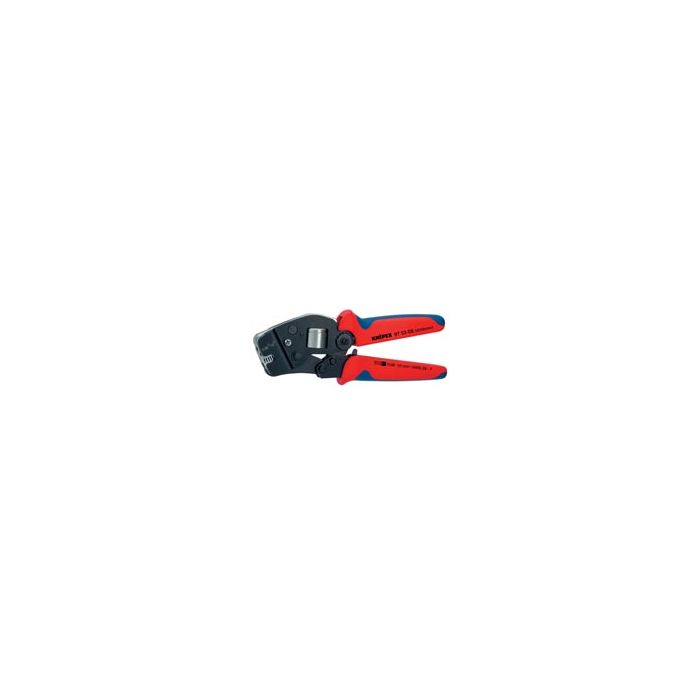

KRIMPTANG VOOR ADEREINDHULZEN ZELFSTELLEND 190MM

Kenmerken
for crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4
for solder-free electrical connections
front loading of the end sleeves (ferrules) into the tool
simple handling as a result of self-adjustment to the size of the end sleeve (ferrule)
with square crimping for optimum contact areas in the clamp connection
repetitive, high crimping quality due to integral lock (self-releasing mechanism)
these tools have been set precisely (calibrated) in the factory
optimum transmission of force due to lever action for fatigue-reduced operation
high operation comfort thanks to handy shape and low weight
all stressed parts are made of special steel, oil-hardened and tempered
crimping from 0.08 - 10.0 mm² in one profile
end sleeves (ferrules) up to 2.5 mm² can also be loaded parallely from the side

Specificaties
range of application: end sleeves (ferrules)
capacity mm²: 0,08 - 10,0
capacity AWG: 28 - 7
length: 190mm
weight: 477g
head: burnished
handles: with two-colour dual component handles
