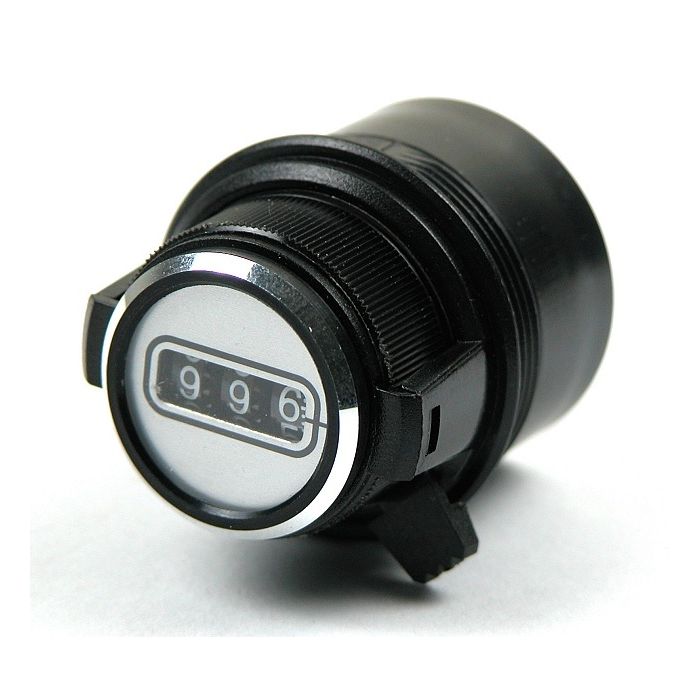

KNOP MET VERTRAGING 1-10 SLAGEN MET UITLEZING

Mechanical and Physical Characteristics
Number of Turns ..................................................................................................................................................................................0 to 10
Readability - Over 10 Turns..........................................................................................................................................Within 1/500 of a turn
Torque with Brake Engaged .....................................................................................................................9.88 N-cm (14.0 oz.-in.) maximum
Markings .............................................................................................................................................................White on black background
Locking Brake................................................................................................................................................................Yes, Positive, friction
Weight.................................................................................................................................................................................34 grams (1.2 oz.)
Set Screw ...........................................................................................................................................................ISO M3x 0.35, one included
Set Screw Tightening Torque ...................................................................................................................16.94 N-cm (1.5 lbs.-in.) minimum
Hex Key Size ................................................................................................................................................................................1.5 mm hex
Shaft and Bushing Requirements
Shaft Diameter Requirements ........................................................................................................................................Refer to chart below
Shaft Extension Beyond Face of Locator Plate................................................................................................11.05 mm (0.43 in.) minimum
16.25 mm (0.63 in.) maximum
Bushing Extension Beyond Face of Locator Plate............................................................................................4.00 mm (0.15 in.) maximum
