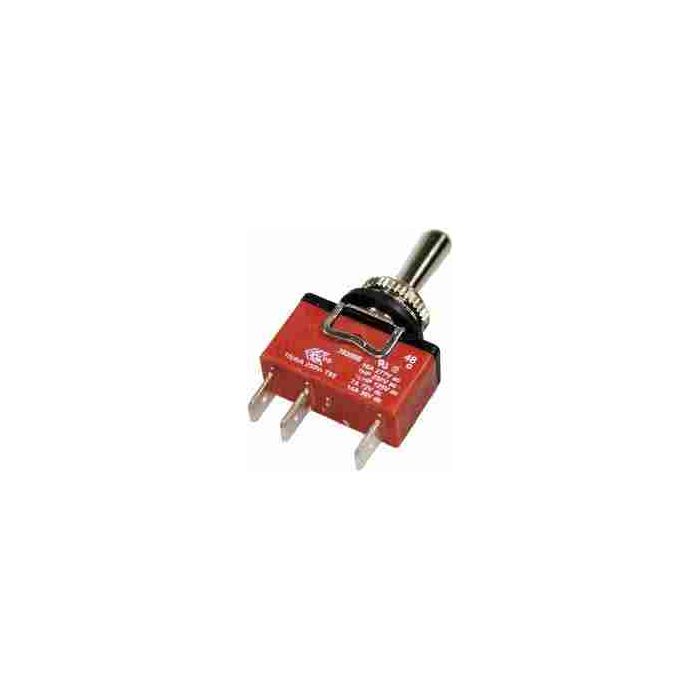

TUIMEL 1 X OM 3ST TOGGLE 10A MET 6,3MM FASTON AANSLUITING
€ 18,95
€ 15,66
Artikelnummer
KN3123
- ArtikelnummerKN3123
- MerkARCOLECTRIC
- Aantal 10+ € 16,11 € 13,31
| Features |
| • Single pole leverswitch • IP67 sealed from panelside • For central mounting • 6,3mm solderterminals • Metal lever • Ratet up to 250V/10A (C3900BE: 16A) • Lever protection cap R17-GUARD available |
 |
| Selection Table |
| Part Nr. | Function |
| KN3101 | SPST |
| KN3102 | SPDT |
| KN3103 | 1xOn-Off-On |
| KN3122 | 1xOn-Off-(On) |
| KN3123 | 1x(On)-Off-(On) |
| R17KAP | Lever Protection Cap |
|
|
| Technical Specifications |
|
|
| Operating Voltage, Max.: | 250V AC |
| Switching Current, Max.: | 10A |
| Switching Current C3900BE, Max.: | 16A |
| Switching Current at Inductive Load, Max.: | 4A |
| Ambient Temperature, Max.: | 85°C |
| Insulation Resistance: | >20MOhm |
| Contact Resistance | |
| (New State, 12V DC/1A): | <100mOhm |
| Soldering Conditions (Hand Solder): | 350°C/6s |
| Materials | |
| Shell: | Nylon 6.6 |
| Lever: | Brass, Nickel-plated |
| Current-carrying Part: | Cu Alloy |
| Contacts: | Silver-plated |
| Flammability Class: | UL94V2 |
|
|
| Panel Cut-out |
| Wall Strength | Cut-out | |
| [mm] | [mm] | |
| 4,0 | Ø 10,8 | |
|
||
| Approvals |
 05: 10 (4)A, 250Vac, T85  16A 125/277Vac 7A 72Vdc, 14A 36Vdc 250Vac 1hp, 125Vac 1/2hp 85°C, file E45221, file LR10990 |
