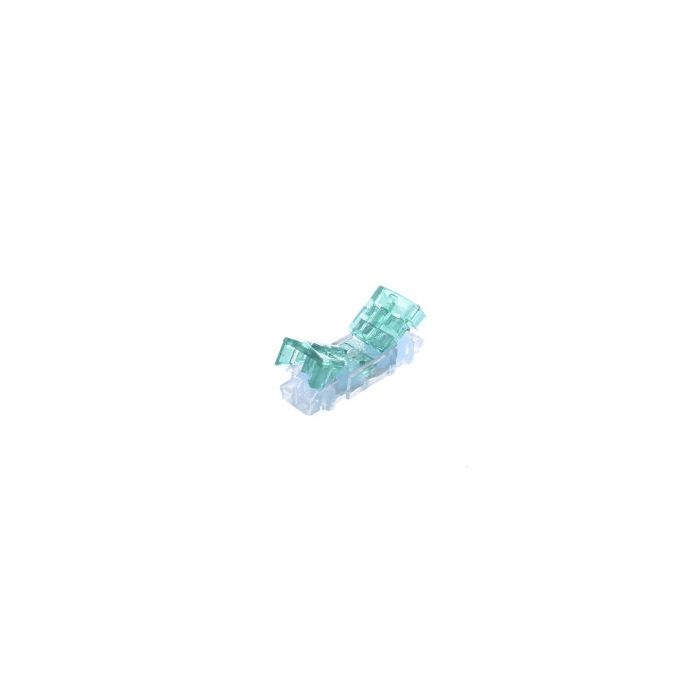

KABELVERBINDER WATERDICHT 4P VOOR KABEL 0.4MM-0.7MM 50 STUKSGROEN
€ 24,95
€ 20,62
Artikelnummer
MMP245
- ArtikelnummerMMP245
- MerkBrand
- Aantal 3+ € 22,45 € 18,55
Features |
• "Non-plastic supply-set "with 500 wire connectors • Self-stripping • With grease filling, moisture resistant • Temperature range: 0...+90°C (2003C237 and 2003C238: 0...+65°C) • Max. Rated Current: 3A @ 75VDC / 50VAC • Connection: insulation displacement technology |
Technische Daten |
Part-Nr. | Pole | Wire-Ømax. | Conductor-Ø | AWG | Insulation | Colour |
[mm] | [mm] | Material | ||||
MMP243 | 4 | 1,4 | 0,4...0,7 | 26...21 | PC | Transp. |
MMP244 | 4 | 1,4 | 0,4...0,7 | 26...21 | PC | Blue |
MMP245 | 4 | 1,4 | 0,4...0,7 | 26...21 | PC | Green |
MMP236 | 2 | 1,52 | 0,4...0,7 | 26...21 | PC | Yellow |
MMP237 | 2 | 2,08 | 0,4...0,9 | 26...19 | PP | Orange |
MMP238 | 3 | 2,08 | 0,4...0,9 | 26...19 | PP | Red |
MMP241 | 2 | 1,67 | 0,4...0,9 | 26...19 | PC | Green |
MMP235 | 3 | 3,8 | 0,8...1,4 | 20...15 | PA | Blue |
MMP240 | 4 | 3,18 | 0,5...0,9 | 24...19 | PC | Red |
MMP239 | 4 | 3,18 | 0,9...1,3 | 19...16 | PC | Green |
MMP242 | 4 | 4,4 | 0,9...1,3 | 19...16 | PC | Black |
