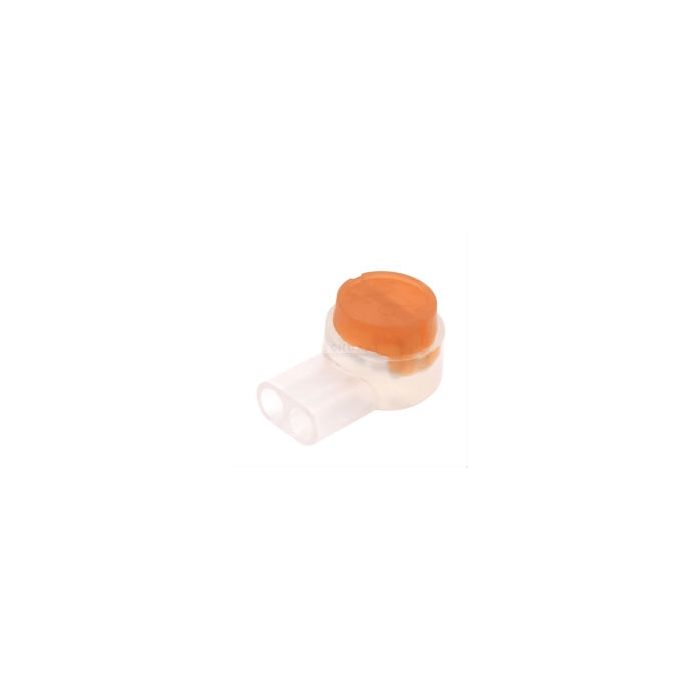

KABELVERBINDER WATERDICHT 2P VOOR KABEL 0.4MM-0.9MM 50 STUKSORANJE
€ 14,96
€ 12,36
Artikelnummer
MMP237
- ArtikelnummerMMP237
- MerkBrand
- Aantal 3+ € 13,46 € 11,12
| Features |
| • "Non-plastic supply-set "with 500 wire connectors • Self-stripping • With grease filling, moisture resistant • Temperature range: 0...+90°C (2003C237 and 2003C238: 0...+65°C) • Max. Rated Current: 3A @ 75VDC / 50VAC • Connection: insulation displacement technology |
 |
| Technische Daten |
| Part-Nr. | Pole | Wire-Ømax. | Conductor-Ø | AWG | Insulation | Colour |
| [mm] | [mm] | Material | ||||
| MMP243 | 4 | 1,4 | 0,4...0,7 | 26...21 | PC | Transp. |
| MMP244 | 4 | 1,4 | 0,4...0,7 | 26...21 | PC | Blue |
| MMP245 | 4 | 1,4 | 0,4...0,7 | 26...21 | PC | Green |
| MMP236 | 2 | 1,52 | 0,4...0,7 | 26...21 | PC | Yellow |
| MMP237 | 2 | 2,08 | 0,4...0,9 | 26...19 | PP | Orange |
| MMP238 | 3 | 2,08 | 0,4...0,9 | 26...19 | PP | Red |
| MMP241 | 2 | 1,67 | 0,4...0,9 | 26...19 | PC | Green |
| MMP235 | 3 | 3,8 | 0,8...1,4 | 20...15 | PA | Blue |
| MMP240 | 4 | 3,18 | 0,5...0,9 | 24...19 | PC | Red |
| MMP239 | 4 | 3,18 | 0,9...1,3 | 19...16 | PC | Green |
| MMP242 | 4 | 4,4 | 0,9...1,3 | 19...16 | PC | Black |
