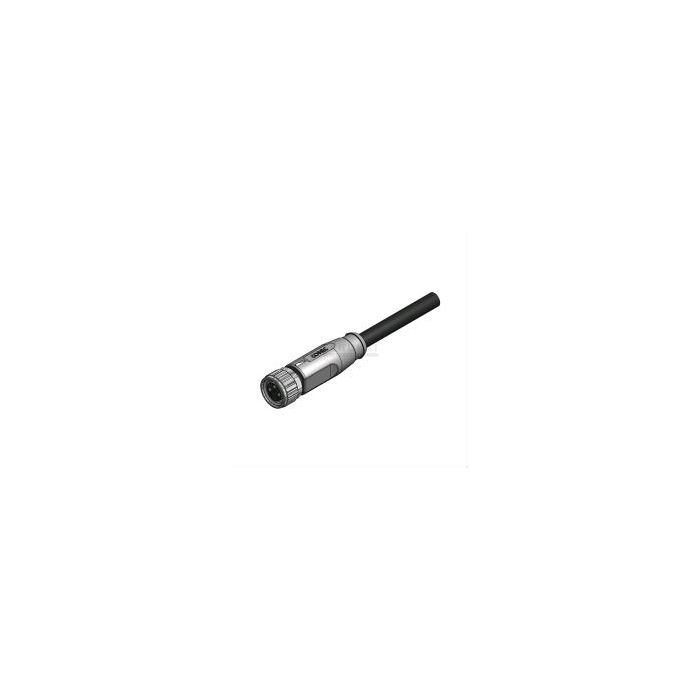

KABEL M8X1 FEMALE 3P 2M 0,25MM2
€ 11,50
€ 9,50
Artikelnummer
M8KFM03/2
- ArtikelnummerM8KFM03/2
- MerkCONEC
- Aantal 5+ € 10,91 € 9,02
Features
• Cable connectors with screw locking • Fixing thread M8x1 / Ø 8mm • Cable: TPU UL, halogen-free, black, Li9Y11Y 0,25mm2 • Cable length: 2m, 5m or 10m |
Technical Specifications |
Connector Locking System: | Screw |
Wire Cross Section, Max.: | 0,25mm2 |
Degree of Protection: | IP671) |
Temperature Range: | -30...+80°C |
Rated Voltage | |
3-pole: | 60V |
4-pole: | 30V |
Rated Current (40°C): | 3A |
Insulation Resistance, Max. Min: | 100MOhm |
Mating Cycles, Min.: | 100 |
Material of Contact: | CuZn |
Contact Plating: | Ni, Au-galvanized |
Material of Housing: | TPU Gray (UL94) |
1) in Mated Condition |
