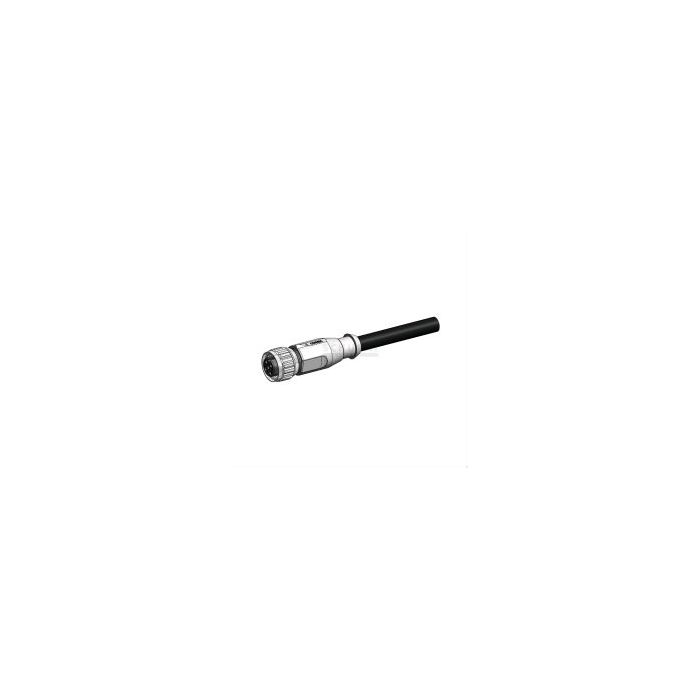

KABEL M12X1 FEMALE 4P 2M 0,34MM2
€ 12,50
€ 10,33
Artikelnummer
M12AKF4/2
- ArtikelnummerM12AKF4/2
- MerkCONEC
- Aantal 5+ € 11,87 € 9,81
Features
• Cable connectors with screw locking • Fixing thread M12x1 / Ø 11mm • Cable: TPU, UL, halogen-free, black, Li9Y11Y 0,34mm2 • Cable length: 2m, 5m oder 10m |
Technical Specifications |
Connector Locking System: | Screw |
Wire Cross Section, Max.: | 0,34mm2 |
Degree of Protection: | IP671) |
Temperature Range: | -30...+80°C |
Rated Voltage | |
4-pole: | 250V |
5-pole: | 60V |
Rated Current (40°C): | 4A |
Insulation Resistance, Min.: | 100MOhm |
Mating Cycles, Min.: | 100 |
Material of Contact: | CuZn |
Contact Plating: | Ni, Au-galvanized |
Material of Housing: | TPU Gray (UL94) |
1) in Mated Condition |
