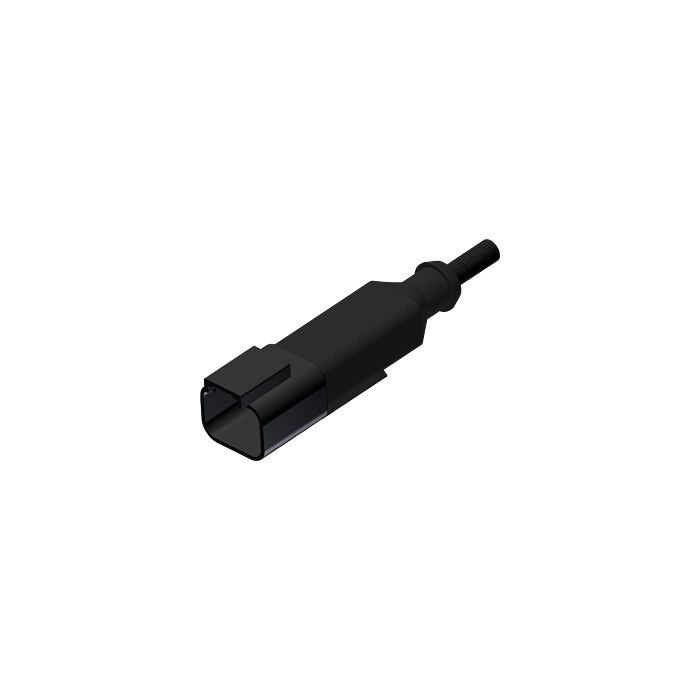

KABEL 2P MALE 10M 0.75MM2 IP67
€ 29,95
€ 24,75
Artikelnummer
DTK2PM0/10
- ArtikelnummerDTK2PM0/10
- MerkCONEC
- Aantal 10+ € 26,95 € 22,27
Technical Specifications
 |
|
| Pole | |
| DT062_, DT042_, : | 2-pole |
| Cable Length | |
| DT_/2: | 2m |
| DT_/5: | 5m |
| DT_/10: | 10m |
| Max. Rated Voltage: | |
| DT_SAK_: | 230V AC/DC |
| Rating Current: | 8A @80°C |
| Min. Mating Cicles: | 100 |
| Wire Cross Section: | 0,75mm2 |
| Cable Quality: | PUR/PVC |
| Degree of Protection*: | IP67/IP69K |
| Housing: | Deutsch DT06-2S-PO12, black |
| Materials | |
| Contact: | Cooper alloy |
| Insulator: | Thermoplastic |
| Contact Plating: | Ni |
| Overmolding: | |
| DT_SAK_, DT_PAK_: | TPU, UL 94, black |
| Temperature Range | |
| Connector: | -40...+85°C |
| Wire Fixed: | -40...+80°C |
| Wire Moved: | -25...+80°C |
