SPEAKER BREEDBAND 200-15000HZ 50OHM 2/3W 60MM VOCHTBESTENDIG
€ 8,25
€ 6,82
Artikelnummer
K64WP/50
- ArtikelnummerK64WP/50
- MerkVISATON
- Aantal 5+ € 7,83 € 6,47

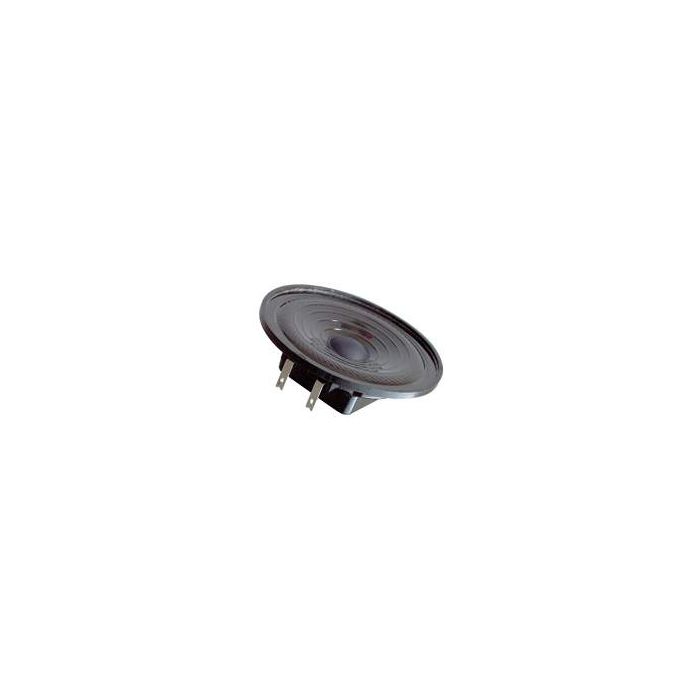

.4 cm (2.5\") full-range speaker with a plastic basket and plastic diaphragm. Broad frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).
Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems
Technical Data:
Rated power 2 W
Maximum power 3 W
Nominal impedance Z 50 Ohm
Frequency response 20015000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 109°/4000 Hz
Excursion limit +/−1,5 mm
Resonance frequency fs 300 Hz
Magnetic induction 0,7 T
Magnetic flux 45 µWb
Height of front pole-plate 2 mm
Voice coil diameter 10 mm
Height of winding 2,5 mm
Cutout diameter 60 mm
Net weight 0,05 kg
Protective system IP 65 *)
Temperature range −40 ... 80 °C
Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems
Technical Data:
Rated power 2 W
Maximum power 3 W
Nominal impedance Z 50 Ohm
Frequency response 20015000 Hz
Mean sound pressure level 86 dB (1 W/1 m)
Opening angle (-6 dB) 109°/4000 Hz
Excursion limit +/−1,5 mm
Resonance frequency fs 300 Hz
Magnetic induction 0,7 T
Magnetic flux 45 µWb
Height of front pole-plate 2 mm
Voice coil diameter 10 mm
Height of winding 2,5 mm
Cutout diameter 60 mm
Net weight 0,05 kg
Protective system IP 65 *)
Temperature range −40 ... 80 °C
