SPEAKER BREEDBAND 50OHM 2W/3W 180-17000HZ 86DB 50MM WATERBESTENDIG
€ 6,95
€ 5,74
Artikelnummer
K50WP/50
- ArtikelnummerK50WP/50
- MerkVISATON
- Aantal 5+ € 6,59 € 5,45

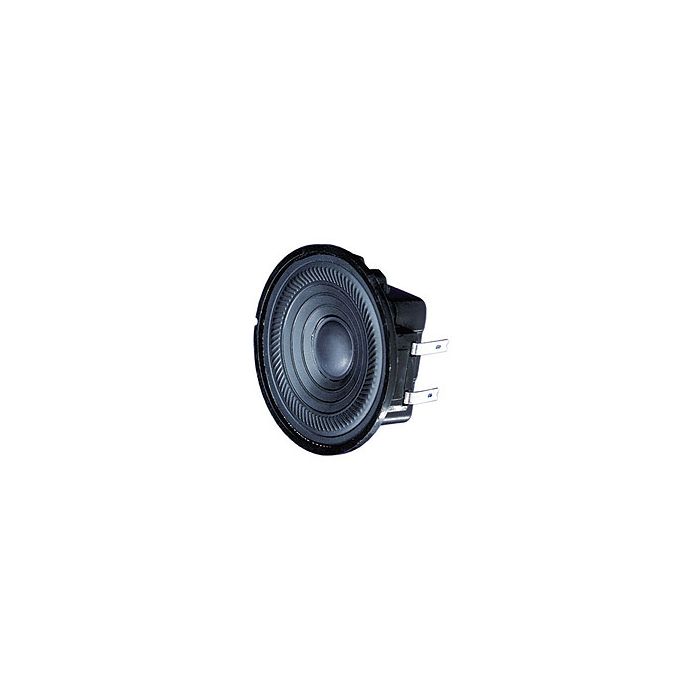

5 cm (2\") full-range speaker with a plastic basket and plastic diaphragm. Broad frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).
Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems
Rated power 2 W
Maximum power 3 W
Nominal impedance Z 50 Ohm
Frequency response 18017000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−1 mm
Resonance frequency fs 300 Hz
Height of front pole-plate 2 mm
Voice coil diameter 10 mm
Height of winding 2,5 mm
Cutout diameter 46 mm
Net weight 0,048 g
Protective system IP 65 *)
Temperature range −40 ... 80
Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems
Rated power 2 W
Maximum power 3 W
Nominal impedance Z 50 Ohm
Frequency response 18017000 Hz
Mean sound pressure level 84 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−1 mm
Resonance frequency fs 300 Hz
Height of front pole-plate 2 mm
Voice coil diameter 10 mm
Height of winding 2,5 mm
Cutout diameter 46 mm
Net weight 0,048 g
Protective system IP 65 *)
Temperature range −40 ... 80
