SPEAKER BREEDBAND 8OHM 2W/3W 250-10000HZ 83DB 50MM WATERBESTENDIG
€ 4,95
€ 4,09
Artikelnummer
K50/8
- ArtikelnummerK50/8
- MerkVISATON
- Aantal 5+ € 4,69 € 3,88

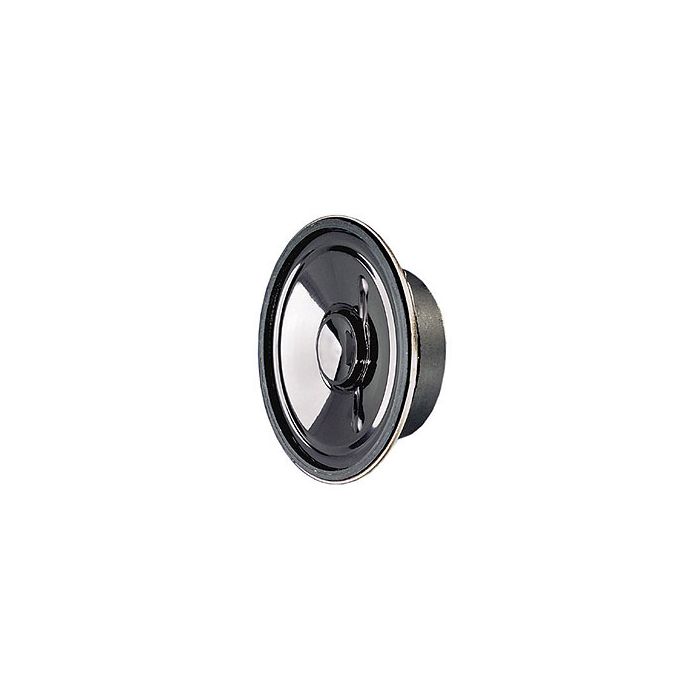

5 cm (2\") miniature speaker with plastic diaphragm and metal basket. Thanks to its compact dimensions, suitable for signal output in machines and other equipment where space is at a premium.
Typical applications:
- Voice and signal output in machines and other equipment both indoors and outdoors
Rated power 2 W
Maximum power 3 W
Nominal impedance Z 8 Ohm
Frequency response 25010000 Hz
Mean sound pressure level 83 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−0,5 mm
Resonance frequency fs 400 Hz
Height of front pole-plate 2 mm
Voice coil diameter 14 mm
Height of winding 3 mm
Cutout diameter 45 mm
Net weight 0,05 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
Typical applications:
- Voice and signal output in machines and other equipment both indoors and outdoors
Rated power 2 W
Maximum power 3 W
Nominal impedance Z 8 Ohm
Frequency response 25010000 Hz
Mean sound pressure level 83 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−0,5 mm
Resonance frequency fs 400 Hz
Height of front pole-plate 2 mm
Voice coil diameter 14 mm
Height of winding 3 mm
Cutout diameter 45 mm
Net weight 0,05 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
