SPEAKER BREEDBAND 300-20000HZ 50OHM 1W/2W 36MM VOCHTBESTENDIG
€ 6,50
€ 5,37
Artikelnummer
K36WP/50
- ArtikelnummerK36WP/50
- MerkVISATON
- Aantal 5+ € 6,17 € 5,10

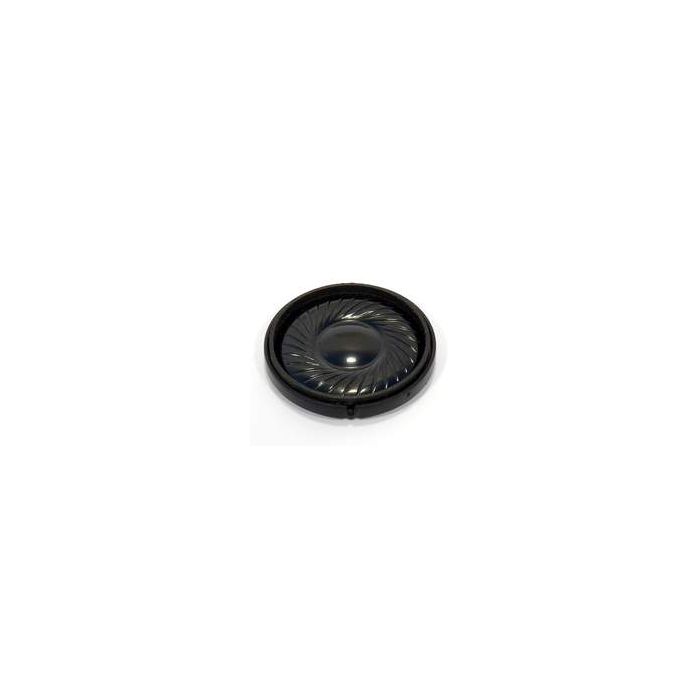

3.6 cm (1.4\") miniature speaker with a plastic basket and plastic diaphragm. Ballanced frequency response and good voice reproduction. Particularly well suited to outdoor applications and where ambient conditions are generally unfavourable (e.g. high humidity).
Typical applications:
- Monitoring speaker for electronic devices
- Monitoring speaker for outdoor systems
Technical Data:
Rated power 1 W
Maximum power 2 W
Nominal impedance Z 50 Ohm
Frequency response 30020000 Hz
Mean sound pressure level 77 dB (1 W/1 m)
Opening angle (-6 dB) 180°/4000 Hz
Excursion limit +/−0,5 mm
Resonance frequency fs 550 Hz
Height of front pole-plate 2 mm
Voice coil diameter 10 mm
Height of winding 2 mm
Cutout diameter 31 mm
Net weight 0,006 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
