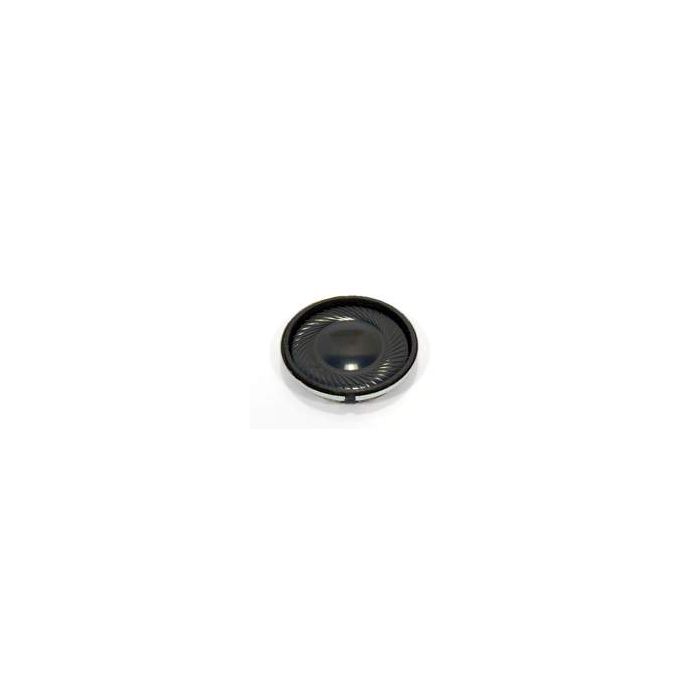

SPEAKER BREEDBAND 300-20000HZ 50OHM 1W/2W 28MM VOCHTBESTENDIG
€ 4,95
€ 4,09
Artikelnummer
K28WP/50
- ArtikelnummerK28WP/50
- MerkVISATON
- Aantal 5+ € 4,69 € 3,88
.8 cm (1.1\") miniature speaker with a plastic diaphragm (Mylar). Balanced frequency response and good voice reproduction. Particularly well suited to applications in very small devices.
Typical applications:
- Monitoring speaker for electronic devices
Technical Data:
Rated power 1 W
Maximum power 2 W
Nominal impedance Z 50 Ohm
Frequency response 300−20000 Hz
Mean sound pressure level 75 dB (1 W/1 m)
Excursion limit +/−0,5 mm
Resonance frequency fs 500 Hz
Voice coil diameter 10 mm
Height of winding 2 mm
Cutout diameter 21 mm
Net weight 0,007 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
Typical applications:
- Monitoring speaker for electronic devices
Technical Data:
Rated power 1 W
Maximum power 2 W
Nominal impedance Z 50 Ohm
Frequency response 300−20000 Hz
Mean sound pressure level 75 dB (1 W/1 m)
Excursion limit +/−0,5 mm
Resonance frequency fs 500 Hz
Voice coil diameter 10 mm
Height of winding 2 mm
Cutout diameter 21 mm
Net weight 0,007 kg
Protective system IP 65 *)
Temperature range −40 ... 70 °C
