K-PO RS-27 SWR METER

€ 49,95 € 41,28
Artikelnummer
RS27
  • ArtikelnummerRS27
  • MerkK-PO
  • Aantal 5+   € 47,44 € 39,21
Print deze pagina Print deze pagina

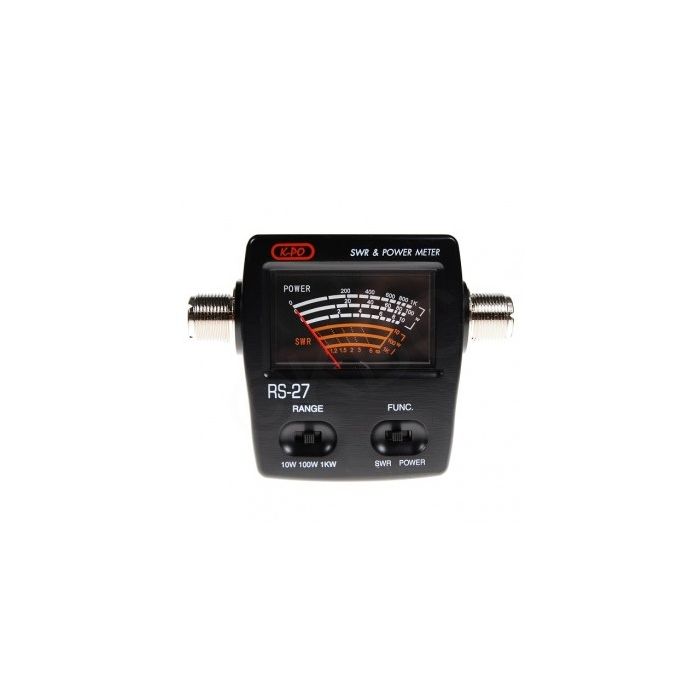

De K-PO RS-27 is een compacte SWR- en vermogensmeter voor de CB- en 10 meterband. Op de overzichtelijke analoge meter lees je eenvoudig de SWR van je antenne of het uitgangsvermogen van je radio af. Uitgangsvermogen tot 1 kW.

Features

  • Meter: Clear analogue meter
  • Reading: Direct read out without calibration
  • Insertion loss: Low insertion loss structure, can be connected permanently in your setup. 1 kW for short time measuring only.

Electrical data

  • Impedance: 50 Ohm
  • Power range: 10 / 100 / 1000 Watts
  • Accuracy: 10 Watts: ± 10% (AVG) / 100 - 1000 Watts: ± 5% (AVG)
  • Minimum Power for SWR: 3 Watts
  • Insertion loss: 0.3 dB or lower
  • Testing function: SWR and Power (FWD)
  • Maximum power: 1000 Watts (short time)

Mechanical data

  • Input connector: UHF (PL) female
  • Output connector: UHF (PL) female
  • Length: 70 mm
  • Height: 30 mm
  • Width: 78 mm
  • Weight: 175 gram

Inside the box

  • Meter: Yes
  • Installation manual: English
