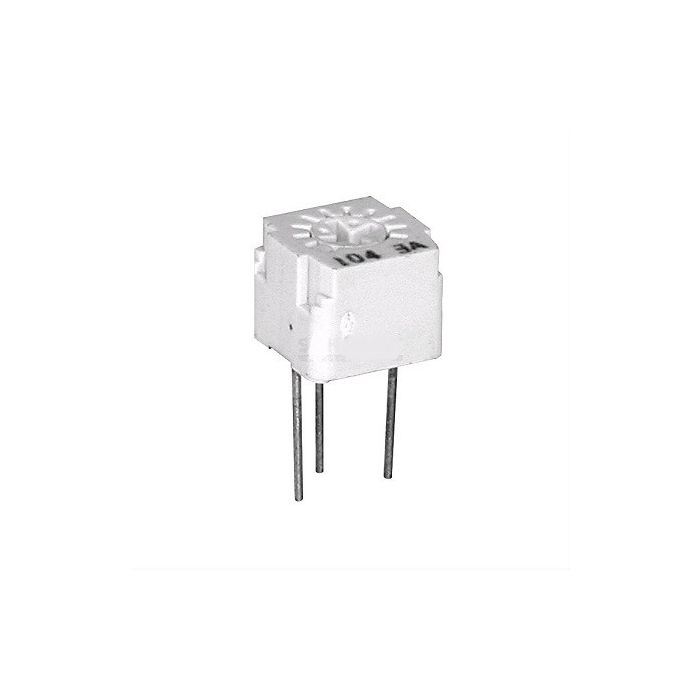

INSTELPOT 1 SLAG LIGGEND 100K
€ 0,90
€ 0,74
Artikelnummer
K100EP
- ArtikelnummerK100EP
- MerkCOPAL
- Aantal 10+ € 0,80 € 0,66
Features
| • Excellent high temperature, high voltage and current ratings • For professional applications |
 |
| Electrical Specifications |
|
|
| Taper: | Linear |
| Power Rating (TU = 70°C): | 0,5W |
| Operating Voltage, Max.: | 200V DC |
| Resistance Tolerance: | ±10% |
| Residual Resistance, Min.: | 2Ohm or 1%xRn |
| Contact Resistance, Min.: | 3Ohmor 2%xRn |
| Temperature Range: | -55...+125°C |
|
|
| Mechanical Specifications |
|
|
| Rotation | |
| Mechanical: | 260° |
| Electrical: | 220° |
| Stop Torque: | 50mNm |
| Operating Force: | 20mNm |
|
|
| Dimensions |
|
|
| Length x Width x Height: | 7,0x7,0x5,8mm |
| Pitch: | 5x2,5mm |
