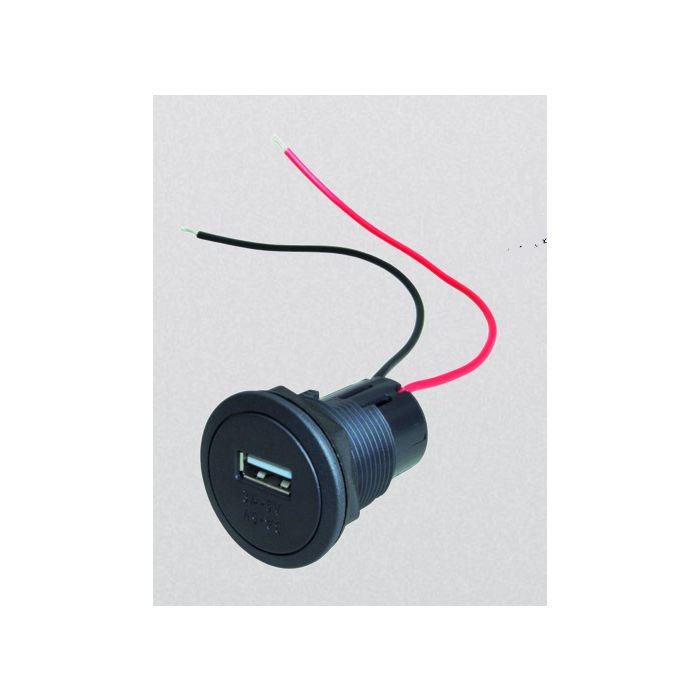

INBOUW SOCKET USB/USB-C 2.2A/3.0AS QUICK CHARGE 12V/24VDC

12-24 V DC / 5 V DC, 3 A with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Fastening by plastic srew nut, installation dimensions Ø 28 mm, pre-assembled cable connection approx. 15 cm.

Technical Details:
Input voltage 8-34 Volt , E1 certificate,
Current consumption < 3 mA,
Cable connection 15 cm, Cable cross section 0.5 mm²,
Panel thickness 2-16 mm, Install dimensions 28 mm +/- 0.1 mm,
Output current max. 3 A
