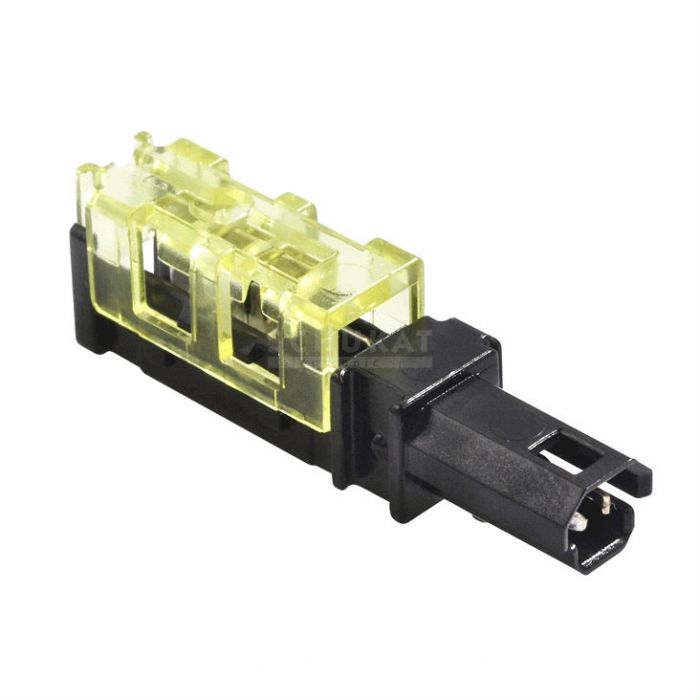

IDC 1-POLIG STEKKER VOOR 02-0.5MM2 2 SETS
€ 2,25
€ 1,86
Artikelnummer
VT3924S
- ArtikelnummerVT3924S
- MerkVOGT
- Aantal 10+ € 2,02 € 1,67
Features
| • Insulated IDC connectors, modular • Bronze contacts, tinned • For easy connection without tools • Strip, solder or screw necessary • Material: polycarbonate • 3924N.1: Connecting plate as security for 3924N (must be ordered separately) |
 |
| Technical Specifications |
|
|
| Material | |
| Contact: | Bronze, tinned |
| Housing: | Polycarbonate (colors, see data sheet) |
| Cover: | Polycarbonate (colors, see data sheet) |
| Connecting Plate: | Polycarbonate (white) |
| Rated Voltage: | See table |
| Rated Current: | See table |
| Temperature Range | |
| 3924P, 3924N: | -20...+75°C |
| 3924R: | -20...+120°C |
| Assemble temperature: | 0...+40°C |
|
|
| Part Nr. | Rated Voltage: | Cross section | Insulation Ø |
| [V AC/DC] | [mm2] | [mm] | |
| 3924N | 100 | 0,2...0,5 | 2,1 |
|
|||
| Part Nr. | Load-bearing Capacity |
| 3924N | 2A (0,25mm2 / AWG24) |
| 3A (0,75mm2 / AWG20) | |
|
|
