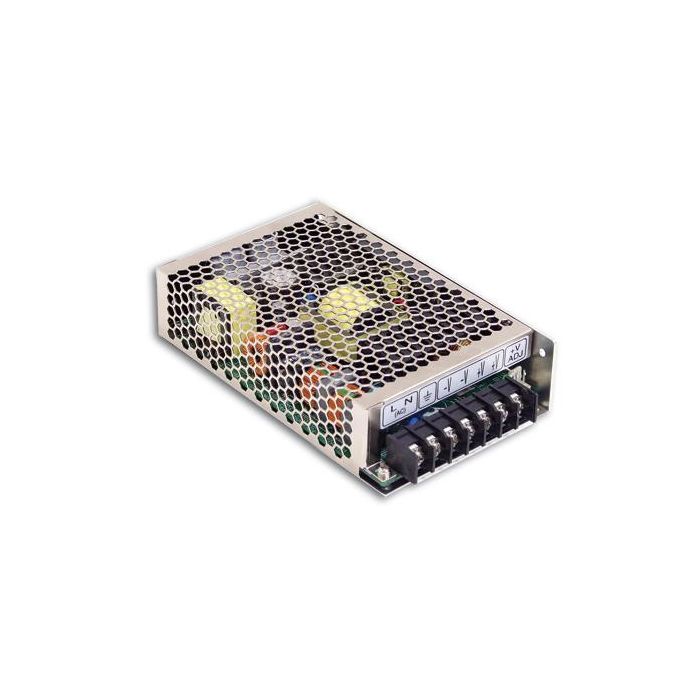

GESCHAKELDE VOEDING SINGLE OUTPUT 156W 12V/13A MET REMOTE SWITCH
€ 95,00
€ 78,51
Artikelnummer
HRPG15012
- ArtikelnummerHRPG15012
- MerkMEANWELL
- Aantal 3+ € 90,24 € 74,58
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 88%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote ON-OFF control
Stand by 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W
Uitgang
dc spanning : 12V
Stroom (max.) : 13A
Vermogen : : 156W
Ripple & Noise (max.) : 120mVp-p
Spanning instelbaar : 10.2 ~ 13.8V
IP-classificatie :
Ingang spanning : 85 ~ 264VAC 120 ~ 373VDC
Frequentie : 47 ~ 63Hz
Dimension : 159x97x38mm
