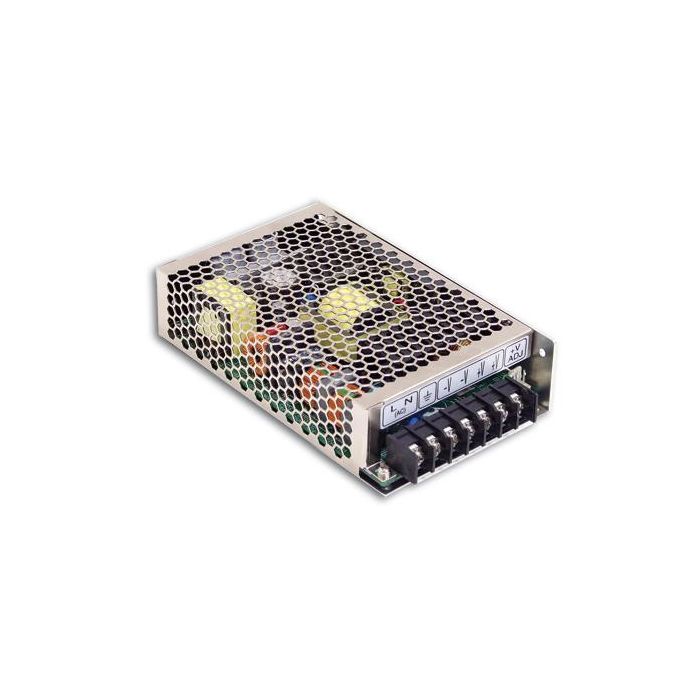

GESCHAKELDE VOEDING SINGLE OUTPUT 150W 7.5V/20A MET REMOTE SWITCH

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 88%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote ON-OFF control
Stand by 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W

Uitgang
dc spanning : 7.5V
Stroom (max.) : 20A
Vermogen : : 150W
Ripple & Noise (max.) : 100mVp-p
Spanning instelbaar : 6.8 ~ 9V
IP-classificatie :

Ingang spanning : 85 ~ 264VAC 120 ~ 373VDC
Frequentie : 47 ~ 63Hz

Dimension : 159x97x38mm
