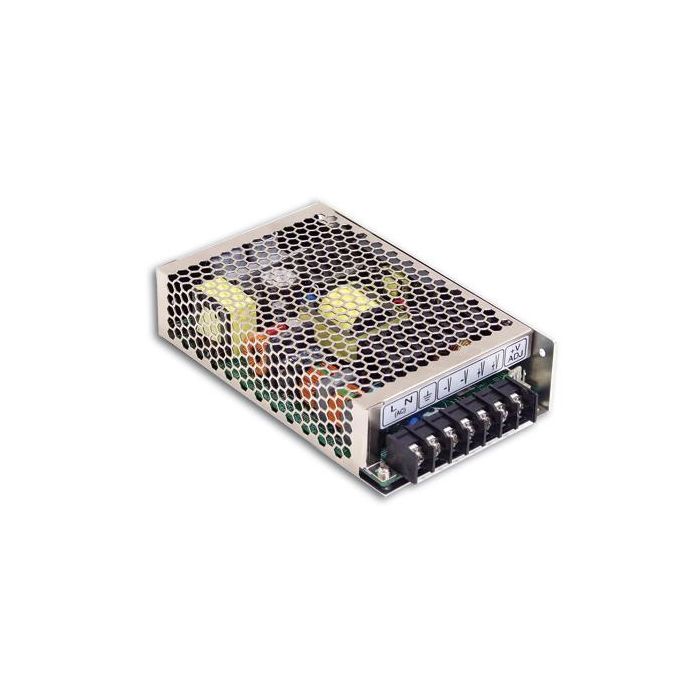

GESCHAKELDE VOEDING SINGLE OUTPUT 99W 3.3V/30A MET REMOTE SWITCH
€ 95,00
€ 78,51
Artikelnummer
HRPG15003
- ArtikelnummerHRPG15003
- MerkMEANWELL
- Aantal 3+ € 90,24 € 74,58
Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 88%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote ON-OFF control
Stand by 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W
Uitgang
dc spanning : 3.3V
Stroom (max.) : 30A
Vermogen : : 99W
Ripple & Noise (max.) : 80mVp-p
Spanning instelbaar : 2.8 ~ 3.8V
IP-classificatie :
Ingang spanning : 85 ~ 264VAC 120 ~ 373VDC
Frequentie : 47 ~ 63Hz
Dimension : 159x97x38mm
Built-in active PFC function, PF>0.95
High efficiency up to 88%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote ON-OFF control
Stand by 5V@0.3A
Built-in remote sense function
No load power consumption<0.5W
Uitgang
dc spanning : 3.3V
Stroom (max.) : 30A
Vermogen : : 99W
Ripple & Noise (max.) : 80mVp-p
Spanning instelbaar : 2.8 ~ 3.8V
IP-classificatie :
Ingang spanning : 85 ~ 264VAC 120 ~ 373VDC
Frequentie : 47 ~ 63Hz
Dimension : 159x97x38mm
