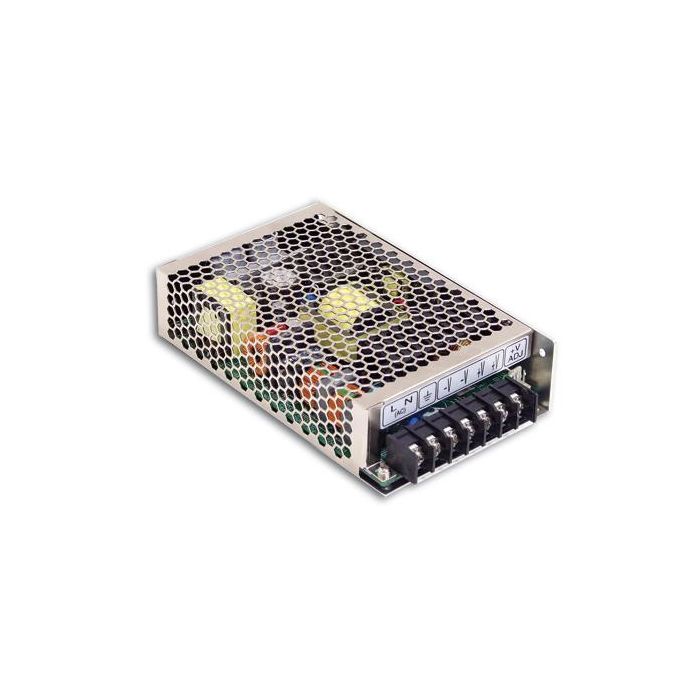

GESCHAKELDE VOEDING SINGLE OUTPUT 159W 48V/3,3A

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote sense function

Uitgang
dc spanning : 48V
Stroom (max.) : 3.3A
Vermogen : : 159W
Ripple & Noise (max.) : 240mVp-p
Spanning instelbaar : 40.8 ~ 55.2V
IP-classificatie :

Ingang spanning : 85 ~ 264VAC 120 ~ 373VDC
Frequentie : 47 ~ 63Hz

Dimension : 159x97x38mm
