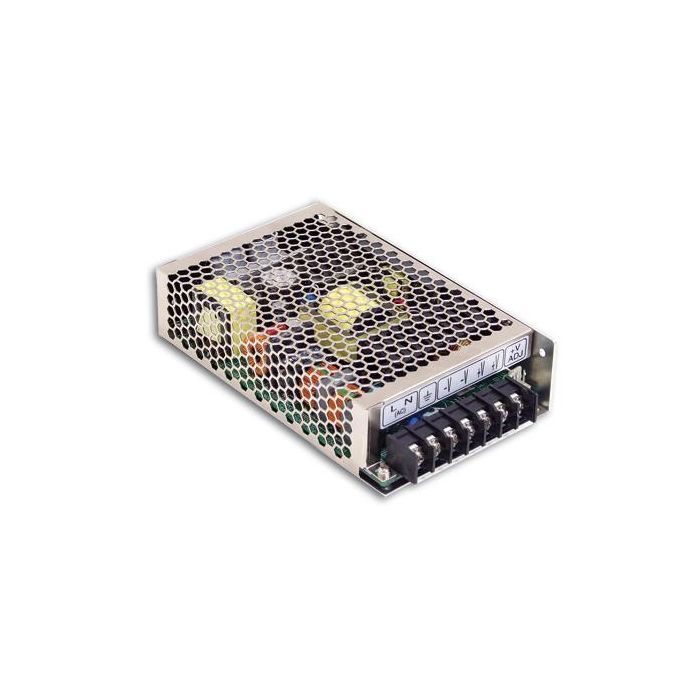

GESCHAKELDE VOEDING SINGLE OUTPUT 155W 24V/6,5A

Universal AC input / Full range
Built-in active PFC function, PF>0.95
High efficiency up to 89%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
1U low profile 38mm
Built-in remote sense function

Uitgang
dc spanning : 24V
Stroom (max.) : 6.5A
Vermogen : : 155W
Ripple & Noise (max.) : 150mVp-p
Spanning instelbaar : 21.5 ~ 28.8V
IP-classificatie :

Ingang spanning : 85 ~ 264VAC 120 ~ 373VDC
Frequentie : 47 ~ 63Hz

Dimension : 159x97x38mm
