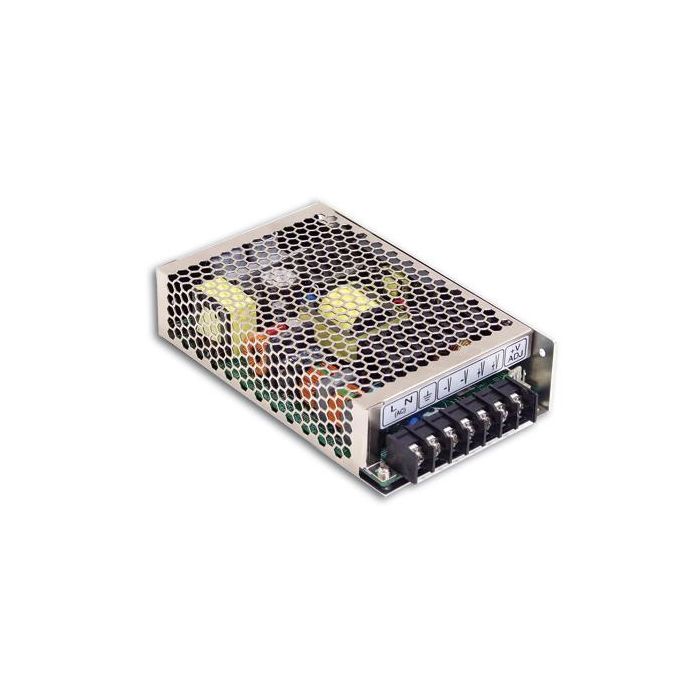

GESCHAKELDE VOEDING SINGLE OUTPUT 104.4W 36V/2.9A
€ 69,50
€ 57,44
Artikelnummer
HRP10036
- ArtikelnummerHRP10036
- MerkMEANWELL
- Aantal 3+ € 66,02 € 54,56
Universal AC input / Full range
Built-in active PFC function
High efficiency up to 90%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Protections: Over temperature (optional)
Cooling by free air convection
1U low profile 38mm
Built-in remote ON-OFF control
No load power consumption<0.5W
All using 105¢J long life electrolytic capacitors
Uitgang
dc spanning : 36V
Stroom (max.) : 2.9A
Vermogen : : 104.4W
Ripple & Noise (max.) : 150mVp-p
Spanning instelbaar 34.2 ~ 39.6V
Ingang spanning : 85 ~ 264VAC 120 ~ 370VDC
Frequentie : 47 ~ 63Hz
Built-in active PFC function
High efficiency up to 90%
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit / Overload / Over voltage
Protections: Over temperature (optional)
Cooling by free air convection
1U low profile 38mm
Built-in remote ON-OFF control
No load power consumption<0.5W
All using 105¢J long life electrolytic capacitors
Uitgang
dc spanning : 36V
Stroom (max.) : 2.9A
Vermogen : : 104.4W
Ripple & Noise (max.) : 150mVp-p
Spanning instelbaar 34.2 ~ 39.6V
Ingang spanning : 85 ~ 264VAC 120 ~ 370VDC
Frequentie : 47 ~ 63Hz
