STEKKERBUS 4MM ZWART VEILIGHEID FASTON 4,8MM AANSLUITING 1000V AC/DC 24A
€ 2,50
€ 2,07
Artikelnummer
HM2402S
- ArtikelnummerHM2402S
- MerkHIRSCHMANN
- Aantal 10+ € 2,25 € 1,86

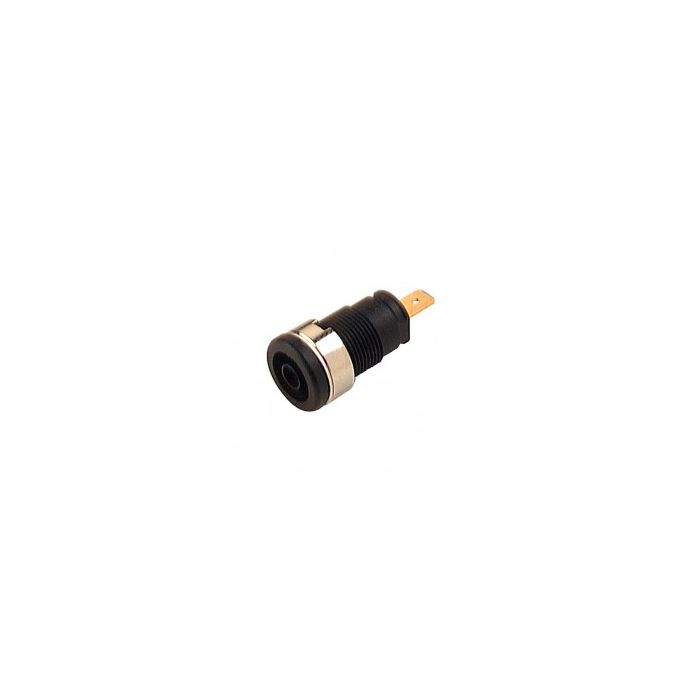

Safety built-in socket, 4 mm diameter, contact-protected, with 4.8 x 0.8 tab connector complying with DIN46244, gold-plated brass. For installation into switchpanels with wall thick-nesses up to 6 mm.
Specification:
Operating voltage: 1000 V AC/DC
Overvoltage category: 2
Pollution severity: 2
Working current: 24 A
Contact resistance: 5 m¥Ø
Temperature range: -40¡ÆC up to +80¡ÆC
Termination: Flachsteck 4.8 x 0.8
Installation hole: ¨ª 12,2mm
Tightening torque: 50 Ncm
Specification:
Operating voltage: 1000 V AC/DC
Overvoltage category: 2
Pollution severity: 2
Working current: 24 A
Contact resistance: 5 m¥Ø
Temperature range: -40¡ÆC up to +80¡ÆC
Termination: Flachsteck 4.8 x 0.8
Installation hole: ¨ª 12,2mm
Tightening torque: 50 Ncm
