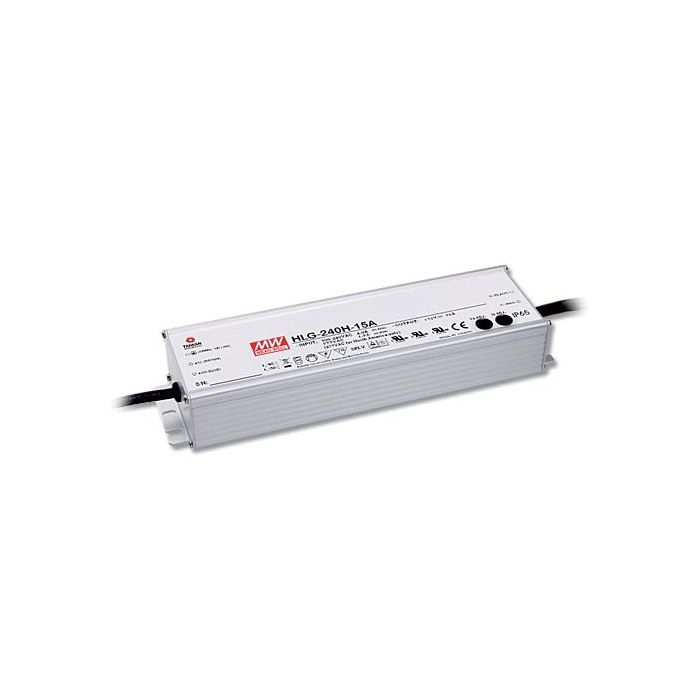

LED VOEDING 24V/10A 240W IP65 BEHUIZING

Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometerIP67 / IP65 design for indoor or outdoor installations
Type HL LED Driver for use in Class ¢¹, Division 2 hazardous location luminaires
Three in one dimming function (1~10Vdc or PWM signal or resistance)
ESuitable for LED lighting and street lighting applications
ECompliance to worldwide safety regulations for lighting
ESuitable for dry / damp / wet locations

Uitgang
dc spanning : 24V
Stroom (max.) : 10A
Vermogen : : 240W
Ripple & Noise (max.) : 150mVp-p
Spanning instelbaar 22.4 ~ 25.6V
IP-classificatie : IP65
Adjustable output voltage with internal potentiometer
Adjustable output current with internal potentiometer



Ingang spanning : 90 ~ 264VAC 127 ~ 373VDC
Frequentie : 47 ~ 63Hz
