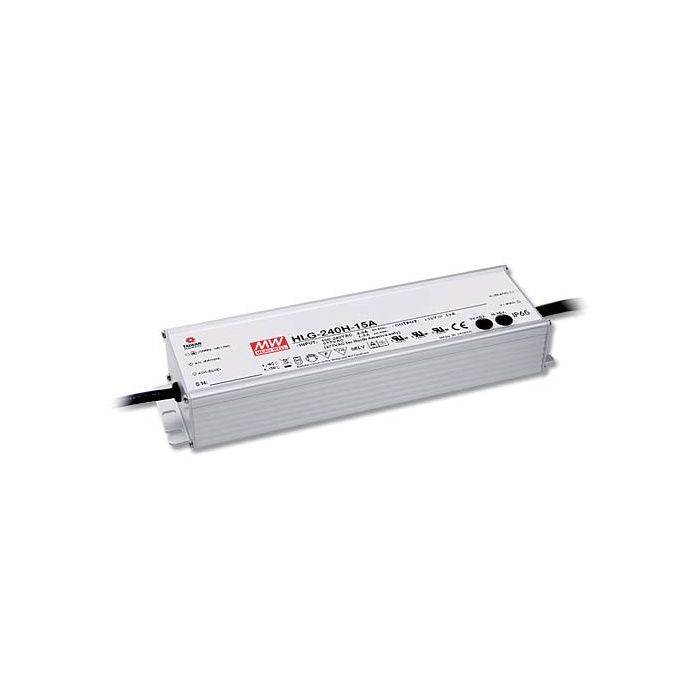

LED VOEDING 15V/15A 225W IP65 BEHUIZING
€ 99,00
€ 81,82
Artikelnummer
HLG24015A
- ArtikelnummerHLG24015A
- MerkMEANWELL
- Aantal 3+ € 94,04 € 77,72
Universal AC input / Full range
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Type HL LED Driver for use in Class ¢¹, Division 2 hazardous location luminaires
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
Uitgang
dc spanning : 15V
Stroom (max.) : 15A
Vermogen : : 225W
Ripple & Noise (max.) : 150mVp-p
Spanning instelbaar : 14 ~ 16V
IP-classificatie : IP65
Adjustable output voltage with internal potentiometer
Adjustable output current with internal potentiometer
Ingang spanning : 90 ~ 264VAC 127 ~ 373VDC
Frequentie : 47 ~ 63Hz
Built-in active PFC function
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
OCP point adjustable through output cable or internal potentiometer
IP67 / IP65 design for indoor or outdoor installations
Type HL LED Driver for use in Class ¢¹, Division 2 hazardous location luminaires
Three in one dimming function (1~10Vdc or PWM signal or resistance)
Suitable for LED lighting and street lighting applications
Compliance to worldwide safety regulations for lighting
Suitable for dry / damp / wet locations
