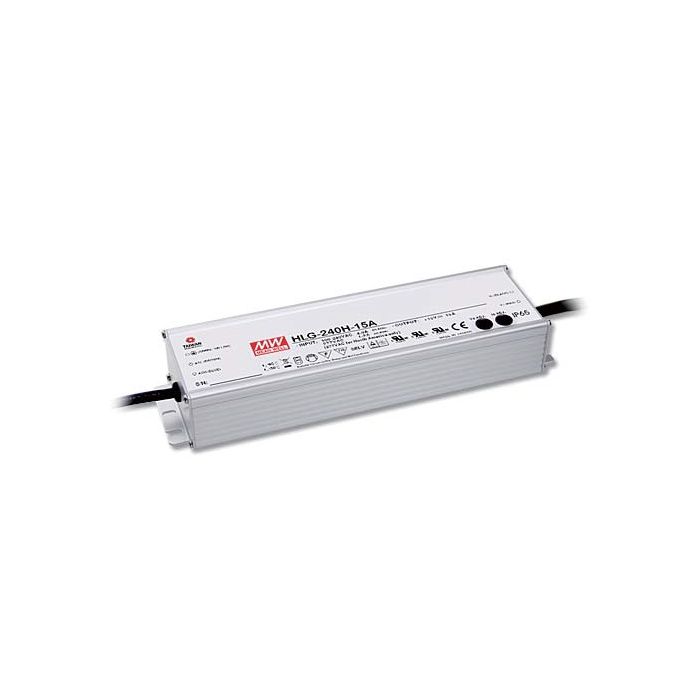

LED VOEDING 12V/16A 192W IP65 BEHUIZING
€ 99,00
€ 81,82
Artikelnummer
HLG24012
- ArtikelnummerHLG24012
- MerkMEANWELL
- Aantal 3+ € 94,04 € 77,72
Universal AC input / Full range
¡EBuilt-in active PFC function
¡EProtections: Short circuit / Over current / Over voltage / Over temperature
¡ECooling by free air convection
¡EOCP point adjustable through output cable or internal potentiometer
¡EIP67 / IP65 design for indoor or outdoor installations
¡EType HL LED Driver for use in Class ¢¹, Division 2 hazardous location luminaires
¡EThree in one dimming function (1~10Vdc or PWM signal or resistance)
¡ESuitable for LED lighting and street lighting applications
¡ECompliance to worldwide safety regulations for lighting
¡ESuitable for dry / damp / wet locations
Uitgang
dc spanning : 12V
Stroom (max.) : 16A
Vermogen : : 192W
Ripple & Noise (max.) : 150mVp-p
Spanning instelbaar : 11.2 ~ 12.8V
IP-classificatie : IP65
Ingang spanning : 90 ~ 264VAC 127 ~ 373VDC
Frequentie : 47 ~ 63Hz
