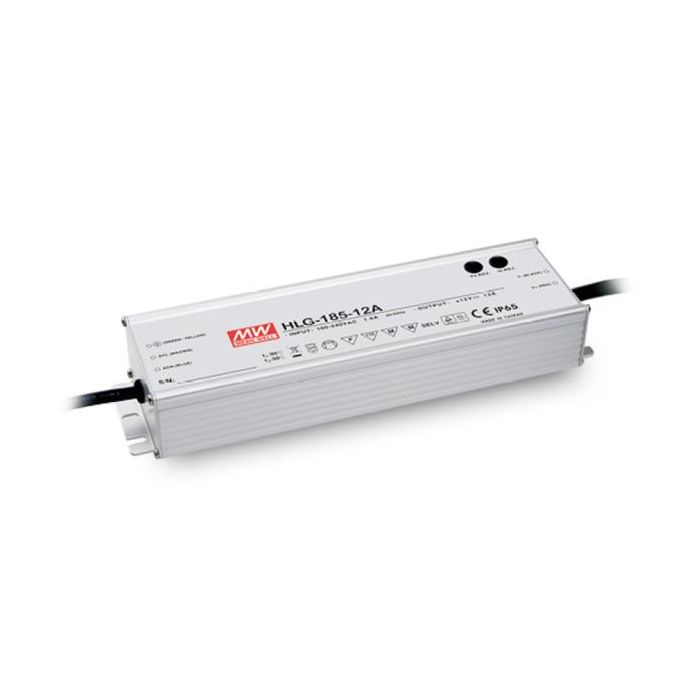

LED VOEDING 12V/13.00A 156W IP65 BEHUIZING
€ 79,94
€ 66,07
Artikelnummer
HLG185H12A
- ArtikelnummerHLG185H12A
- MerkMEANWELL
- Aantal 3+ € 75,94 € 62,76
-Universal AC input / Full range (up to 305VAC)
-Built-in active PFC function
-Protections: Short circuit / Over / Over voltage / Over temperature
-Cooling by free air convection
-OCP point adjustable through output cable or internal
-IP67 / IP65 design for indoor or outdoor installations
-Three in one dimming function (1~10Vdc or PWM signal or
-Suitable for LED lighting and street lighting applications
-Compliance to worldwide safety regulations for lighting
-IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer.
Input Voltage: 90...305V AC (47...63Hz
Input Inrush Current, Max.: 75A
Over Current Protection: 95...108%
Withstand Voltage
I/P-O/P: 3750V AC
I/P-FG: 2000V AC
O/P-FG: 500V AC
Operating Temperature: -40...+50°C
Weight: 1250g
I/P = Input, O/P = Output, FG = Frame Ground
Output Voltage: 12V
Output Voltage Adjustment: 10,8...13,527V
Output Current Adjustment: 6,5...13A
Output Power: 156W
Output Voltage Tolerance: 2,5%
Ripple & Noise: 150mVp-p
Typ. Efficiency: 91,5%
