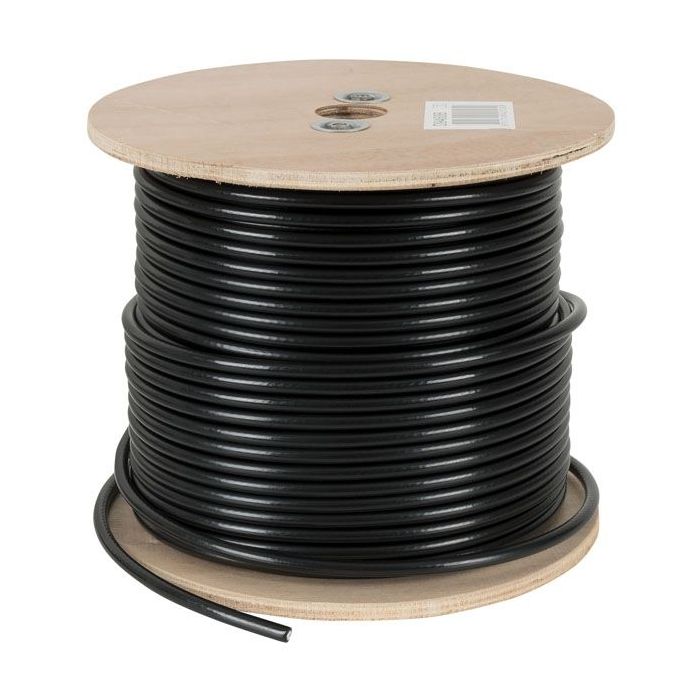

HD SDI KABEL ZWART 6.7MM

SDI Standard: SMPTE 292M
Coax Standard: RG-6U
Bitrates: <1485 MBit/s
Conductor drains Ø mm: 1x1,02CCS (18AWG)
Conductor insulation: HDPE
Conductor insulation Ø mm: 4,65
Conductor shield1: AL Foil
Conductor shield1: 16x3x0,12AL, Braiding
Outer insulation: PVC 6,7 Ø mm
Working temperature: -20~50 °C (min./max.)
Nominal impedance: 75 Ohm
