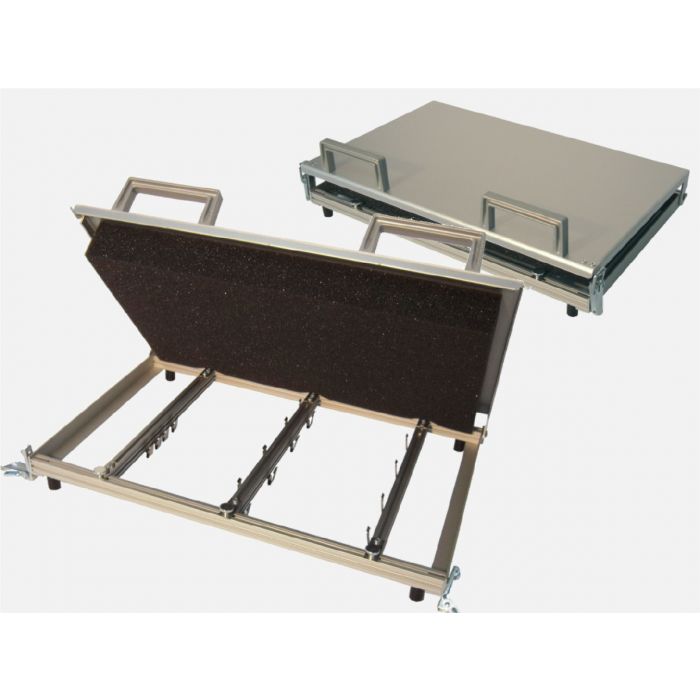

ASSEMBLAGE EN SOLDEERFRAME 4 X FRAME
€ 162,50
€ 134,30
Artikelnummer
GT142043
- ArtikelnummerGT142043
- MerkGIE-TEC
- Aantal 2+ € 154,37 € 127,58
Application
Above the frame a 40mm thick foam lining in the lid holds the components in position during soldering. The whole device is turned 180°, the lid handle acting as a tilting support. Retaining steel springs can be attached to the rails by screws, allowing the removal and insertion of boards at will after initial location of the rails. The lid is removable to facilitate populating the board.
Features
Aluminium frame and aluminium lid
Two resp. three movable rails with slots for inserting the boards
Lid with 40mm thick foam lining
Complete Populatiang and Soldering Frames
Size: 405x260x70mm
Board Size, Max.: 230x350mm (4 Eurocards)
Above the frame a 40mm thick foam lining in the lid holds the components in position during soldering. The whole device is turned 180°, the lid handle acting as a tilting support. Retaining steel springs can be attached to the rails by screws, allowing the removal and insertion of boards at will after initial location of the rails. The lid is removable to facilitate populating the board.
Features
Aluminium frame and aluminium lid
Two resp. three movable rails with slots for inserting the boards
Lid with 40mm thick foam lining
Complete Populatiang and Soldering Frames
Size: 405x260x70mm
Board Size, Max.: 230x350mm (4 Eurocards)
