ANTENNE BASIS 27MHZ 5/8 3.35DBI

€ 79,94 € 66,07

Artikelnummer

GPV5/8

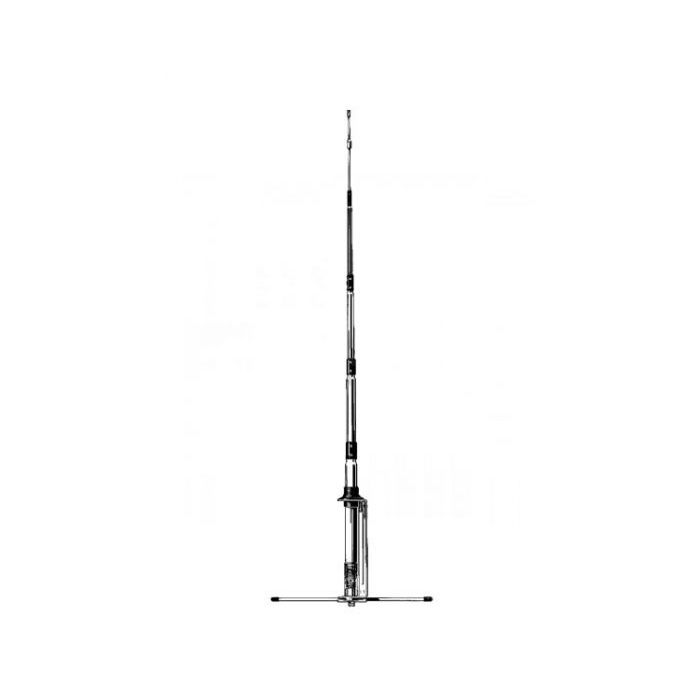

Sirio - GPV 5/8 (GPE 5/8 ECO)

Toon meer Toon minder

ArtikelnummerGPV5/8
MerkSIRIO

Voor dit product geldt een toeslag voor verzending van 12,95 Euro (excl BTW)

Aantal 5+ € 75,94 € 62,76

Economic version of the Sirio GPE 5/8. Same performances but without the anti-static top and without the plastic sleeves. Comes in a PE poly-bag packaging instead of a carton box.

Frequency range: 26.4 - 29.0 MHz tunable

Electrical data

Electrical type: 5/8 λ ground plane
Gain: 1.2 dBd, 3.35 dBi
VSWR: ≤ 1.3
Bandwidth: 1600 kHz ≤ 2.0
Maximum continuous power: 250 Watts (CW)
Power peak: 750 Watts (CW)
Impedance: 50 Ohm
Polarization: Linear vertical
Feed system: Transformer DC-ground / base

Mechanical data

Materials: Aluminium, copper, galvanized steel, nylon
Mast Ø: 35 - 42 mm
Max wind resistance: 130 km/h
Height: 5950 mm
Weight: 2500 gram
Mounting type: On mast
Antenna connector: UHF-female
Radial length: 1320 mm

ANTENNE BASIS 27MHZ 5/8 3.35DBI

Sirio - GPV 5/8 (GPE 5/8 ECO)

Electrical data

Mechanical data
