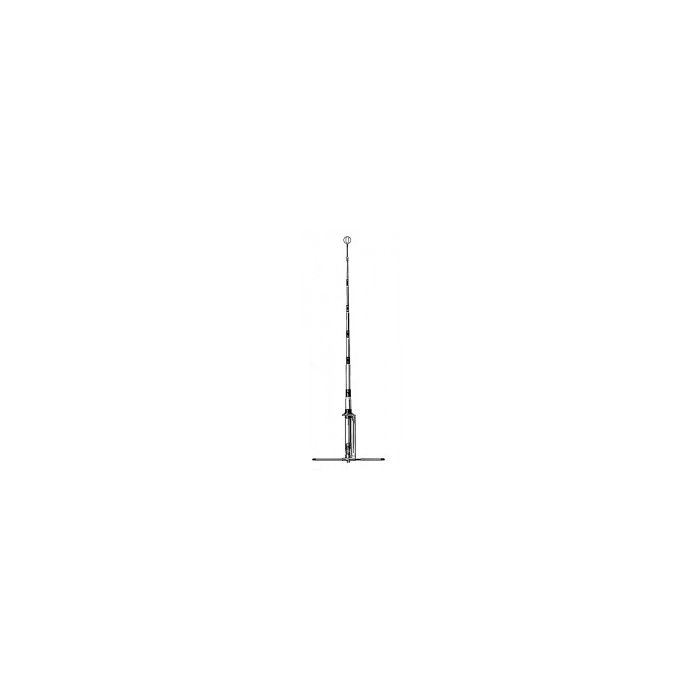

BASIS CB ANTENNE 27MHZ 5/8 STATIC

Features: - Base station antenna, Omnidirectional
- Tunable by acting on the whip length
- Low radiation angle for excellent DX
- Coil protected by transparent cover
- Whip equipped whit waterproof jointing sleeve
- Made of aluminium alloy 6063 T-832
- Protection from static discharges DC-Ground


Electrical Data
- Type:
GPE 27 5/8: 5/8¥ë ground plane
- Frequency range: tunable from 26.4 to 29.0 MHz
- Impedance: 50¥Ø
- Radiation (H-plane): 360¡Æ omnidirectional
- Polarization: linear vertical
- Gain:
GPE 27 5/8: 1.2 dBd, 3.35 dBi
- Bandwidth @ SWR ¡Â 2: ¡Ã 1600 KHz
- SWR @ res. freq.: ¡Â 1.3
- Max. power:
250 Watts (CW) continuous
750 Watts (CW) short time
- Feed system / position: Transformer DC-ground / base
- Connector: UHF-female

Mechanical Data
- Materials: Aluminium, Steel, Copper, Nylon
- Wind resistance: 130 Km/h
- Wind load:
GPE 27 5/8: 188 N at 150 Km/h
- Wind surface:
GPE 27 5/8: 0.13 m©÷
- Height (approx.): 5950 mm
- Weight (approx.): 2500 gr
- Radial length (approx.): GPE 27 5/8 1320 mm
- Mounting mast: ¨ª 35-42 mm
