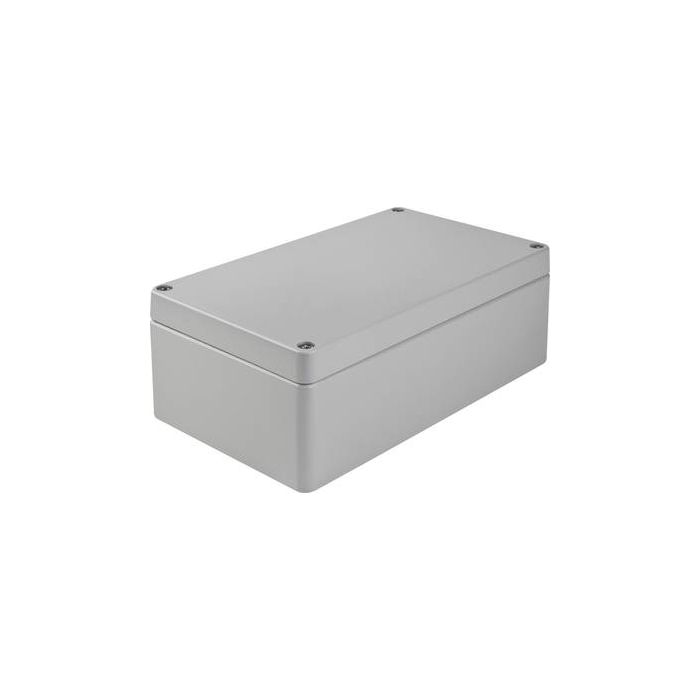

GIETALUMINIUM 280X180X101MM IP68
€ 131,90
€ 109,01
Artikelnummer
ETA131
- ArtikelnummerETA131
- MerkBOPLA
- Aantal 5+ € 118,70 € 98,10
Features
• Dust proof, jet water-protected aluminum die-cast metal enclosure • With integrated sealed cover and stainless steel countersunk screws • Recommended for all regular clamping types and also as clamping enclosures due to the assembly of cams in the lower surface of the enclosure. • Offset assembly cams make the attachment of plates without pre-drilling possible. • Cams with lateral mounting rails contribute to a secure levitation rail attachment. • Cams are additionally attached to the inner surface of the cover. • All assembly cams are appropriate for machine screws. • Also suitable for wall assembly |
Application |
• To protect electronics in tough environments • For external use • Everywhere, where high temperatures occur • Industrial sectors, e.g. car wash |
Technical Specifications |
Enclosure Material: | GD Al Si 12 |
Sealing: | Neoprene or Polyurethane-Foamed |
90°C Heat and Chemical Resistant | |
Protection Class: | IP66 |
Dimensions |
Part Nr. | L | B | H1 | H2 |
[mm] | ||||
ETA100 | 50 | 45 | 24 | 6 |
ETA101 | 58 | 64 | 25 | 9 |
ETA102 | 98 | 64 | 25 | 9 |
ETA105 | 75 | 80 | 42 | 15 |
ETA110 | 125 | 80 | 42 | 15 |
ETA114 | 200 | 100 | 61 | 20 |
ETA115 | 175 | 80 | 42 | 15 |
ETA118 | 160 | 100 | 61 | 20 |
ETA122 | 220 | 120 | 61 | 20 |
ETA125 | 160 | 160 | 71 | 20 |
ETA126 | 200 | 140 | 61 | 30 |
ETA130 | 260 | 160 | 71 | 20 |
ETA131 | 280 | 180 | 71 | 30 |
ETA135 | 360 | 160 | 71 | 20 |
Approvals |
German Lloyd Certificate 91 184 HH |
