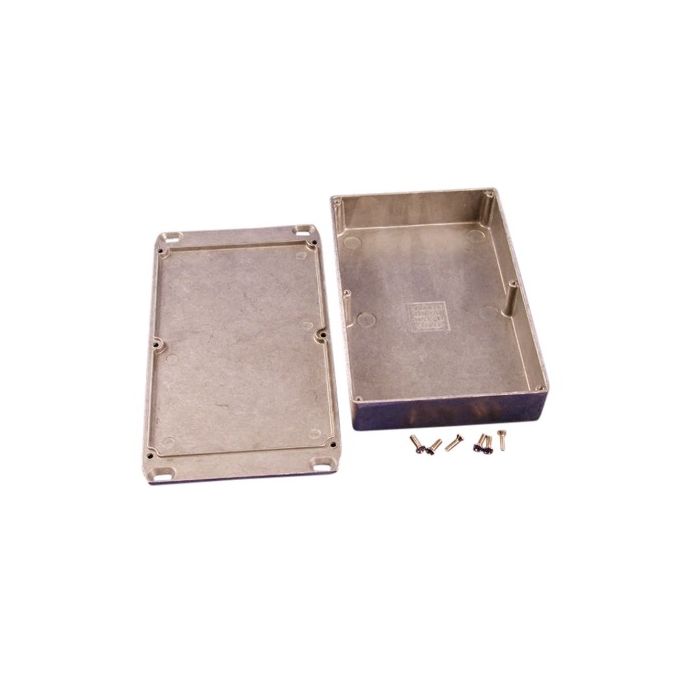

GIETALUMINIUM 187X119X37MM MET FLENS
€ 32,36
€ 26,74
Artikelnummer
HM1590DDFL
- ArtikelnummerHM1590DDFL
- MerkHAMMOND
- Aantal 5+ € 29,11 € 24,06
| Features |
| • Rugged diecast aluminium alloy enclosure • Flanged lid permits fast and easy mounting • High quality finish • Lightweight, IP54 • Excellent EMC performance • Smooth surface, unpainted or black • Four machined screws secure lid into tapped holes |
 |
| Dimensions |
| Part Nr. | A | B | C | E | F | G | H |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |
| HA1590LBFL | 50 | 50 | 27 | 33,7 | 33,7 | 26 | 77 |
| HA1590AFL | 92,5 | 38,5 | 27 | 76,5 | 22,5 | 14 | 110 |
| HA1590GFL | 100 | 50 | 21 | 81,1 | 31,1 | 25 | 113 |
| HA1590SFL | 110 | 82 | 40 | 94,5 | 66,25 | 57,25 | 126 |
| HA1590BFL | 112 | 60 | 27 | 96,1 | 44,5 | 35,6 | 125 |
| HA1590BBFL | 119 | 93,5 | 30 | 102,5 | 77,5 | 69 | 137 |
| HA1590UFL | 119 | 119 | 55 | 103,5 | 103,5 | 96 | 138 |
| HA1590VFL | 119 | 119 | 90 | 104,3 | 102,8 | 94,5 | 136 |
| HA1590CFL | 120 | 94 | 52,5 | 104 | 78 | 69 | 137 |
| HA1590TFL | 120,5 | 79,5 | 55 | 104,5 | 63,5 | 56 | 138 |
| HA1590N1FL | 121 | 66 | 35 | 104,1 | 49 | 38,5 | 135,6 |
| HA1590P1FL | 153 | 82 | 46 | 137 | 63 | 56 | 168 |
| HA1590DDFL | 187,5 | 119,5 | 33 | 166 | 98 | 94,5 | 205,5 |
| HA1590DFL | 187,5 | 119,5 | 52 | 178 | 110 | 94,5 | 205 |
| HA1590R1FL | 192 | 111 | 57 | 171 | 91 | 79,7 | 205 |
