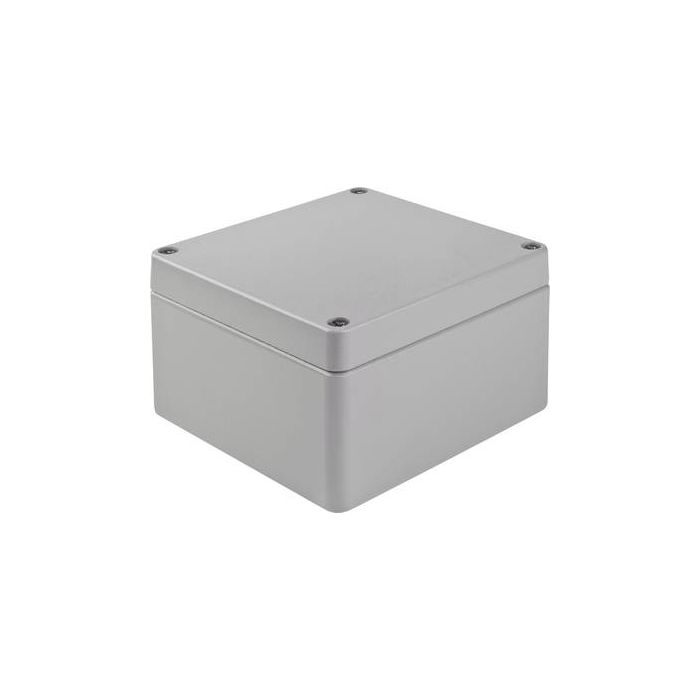

GIETALUMINIUM 160X160X91MM IP68
€ 98,00
€ 80,99
Artikelnummer
ETA125
- ArtikelnummerETA125
- MerkBOPLA
- Aantal 5+ € 88,20 € 72,89
Features
| • Dust proof, jet water-protected aluminum die-cast metal enclosure • With integrated sealed cover and stainless steel countersunk screws • Recommended for all regular clamping types and also as clamping enclosures due to the assembly of cams in the lower surface of the enclosure. • Offset assembly cams make the attachment of plates without pre-drilling possible. • Cams with lateral mounting rails contribute to a secure levitation rail attachment. • Cams are additionally attached to the inner surface of the cover. • All assembly cams are appropriate for machine screws. • Also suitable for wall assembly |
 |
| Application |
| • To protect electronics in tough environments • For external use • Everywhere, where high temperatures occur • Industrial sectors, e.g. car wash |
|
| Technical Specifications |
|
|
| Enclosure Material: | GD Al Si 12 |
| Sealing: | Neoprene or Polyurethane-Foamed |
| 90°C Heat and Chemical Resistant | |
| Protection Class: | IP66 |
|
|
| Dimensions |
| Part Nr. | L | B | H1 | H2 |
| [mm] | ||||
| ETA100 | 50 | 45 | 24 | 6 |
| ETA101 | 58 | 64 | 25 | 9 |
| ETA102 | 98 | 64 | 25 | 9 |
| ETA105 | 75 | 80 | 42 | 15 |
| ETA110 | 125 | 80 | 42 | 15 |
| ETA114 | 200 | 100 | 61 | 20 |
| ETA115 | 175 | 80 | 42 | 15 |
| ETA118 | 160 | 100 | 61 | 20 |
| ETA122 | 220 | 120 | 61 | 20 |
| ETA125 | 160 | 160 | 71 | 20 |
| ETA126 | 200 | 140 | 61 | 30 |
| ETA130 | 260 | 160 | 71 | 20 |
| ETA131 | 280 | 180 | 71 | 30 |
| ETA135 | 360 | 160 | 71 | 20 |
|
||||
| Approvals | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| German Lloyd Certificate 91 184 HH | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
