ANTENNEVERSTERKER 20DB NIET RETOURGESSCHIKT
€ 64,95
€ 53,68
Artikelnummer
GHV520
- ArtikelnummerGHV520
- MerkHIRSCHMANN
- Aantal 2+ € 61,70 € 50,99

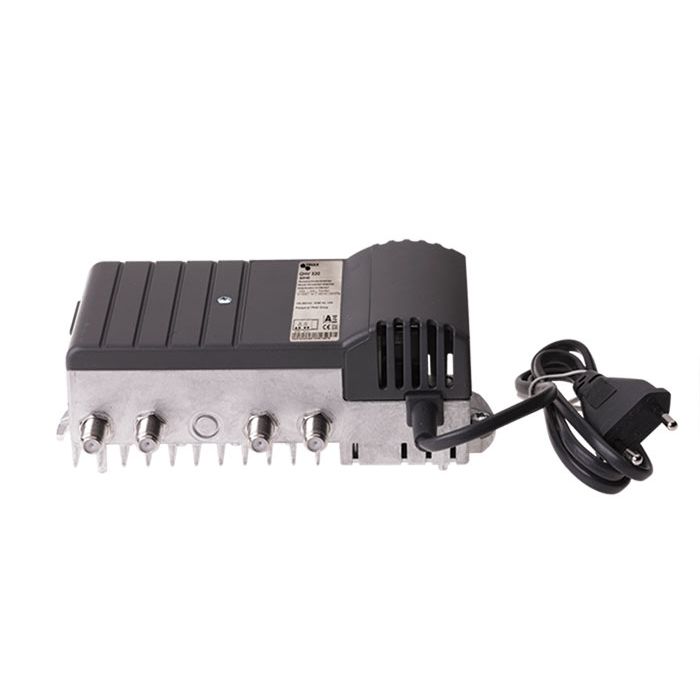

Triax GHV 500 series is a low noise coaxial apartment- distribution amplifier, for use in smaller MATV distribution networks in multi dwelling houses.
Technical Specifications
EAN EAN-number 5702663231382
FP Frequency range 47 - 1006 MHz
Gain 20 (1006MHz) dB
Attenuation 0...15 dB
Noise figure <7.0 (typ. 5) dB
Return loss @ 40 MHz (-1.5 dB/octave) >18
Output level
Output level CSO @ 60 dB IMD 98 dB
Output level CTB @ 60 dB IMD 100 dB
Connections
RF connector F-con
RF connector - input F-female
RF connector - output F-female
RF connector - Test point input: bi-directional -20 dB
RF connector - Test point output: directional -20 dB
Operating conditions
Power supply (50-60 Hz) 190-264 V
Power consumption <4W
Operation temperature -25...+55°C
Protection class II Housing protection class IP20
Dimension accessories (H x D x W) 65 x 100 x 170mm
Weight 650 g
