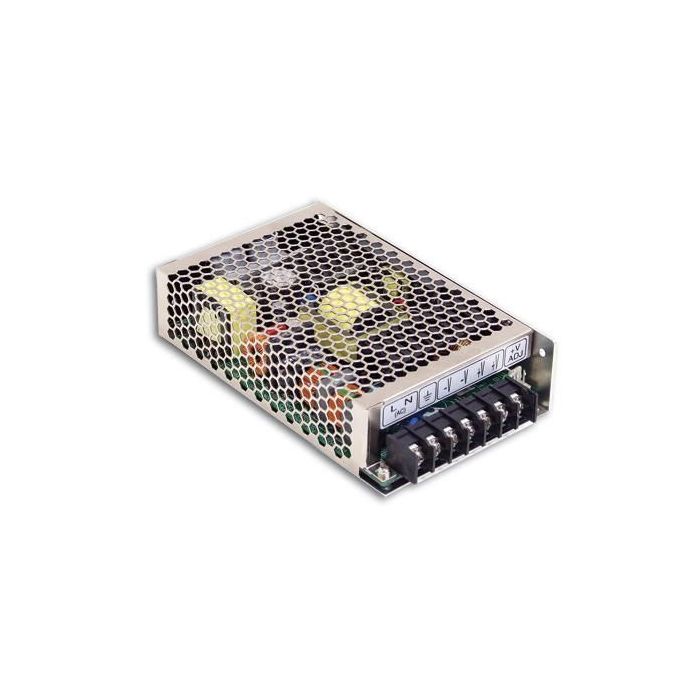

GESCHAKELDE VOEDING SINGLE OUTPUT 85W 5.0V/17A
€ 69,50
€ 57,44
Artikelnummer
HRP10005
- ArtikelnummerHRP10005
- MerkMEANWELL
- Aantal 3+ € 66,02 € 54,56
| Features |
| • Enclosed case, screw terminals • Universal input • Withstands 300V AC surge input for 5s • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Low profile • Long life 105°C electrolytic capacitors • Low no load power consumption • Built-in remote On/Off control |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 65A |
| Leakage Current, Max.: | 1mA |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -40...+60°C |
| Weight: | 560g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | Uadj | DUA | URN | h |
| [V] | [A] | [W] | [V] | [%] | [mVp-p] | [%] | |
| HRP-100-3.3 | 3,3 | 0...20 | 66 | 3,1...3,8 | +2,5,-3,5 | 80 | 78 |
| HRP-100-5 | 5 | 0...17 | 85 | 4,75...5,8 | 2,5 | 80 | 83 |
| HRP-100-7.5 | 7,5 | 0...13,5 | 101,3 | 7,1...9 | 2,5 | 100 | 84 |
| HRP-100-12 | 12 | 0...8,5 | 102 | 11,4...13,8 | 1,5 | 120 | 87,5 |
| HRP-100-15 | 15 | 0...7 | 105 | 14,25...18 | 1,5 | 150 | 88 |
| HRP-100-24 | 24 | 0...4,5 | 108 | 22,8...28,8 | 1,5 | 150 | 88,5 |
| HRP-100-36 | 36 | 0...2,9 | 104,4 | 34,2...39,6 | 1,5 | 200 | 89 |
| HRP-100-48 | 48 | 0...2,2 | 105,6 | 45,6...55,2 | 1,5 | 240 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | |||||||
