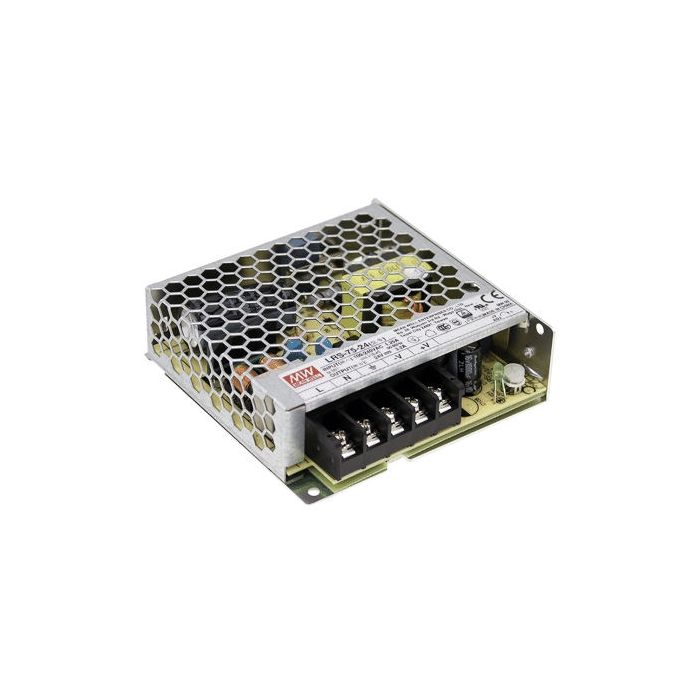

GESCHAKELDE VOEDING SINGLE OUTPUT 75W 15V/5A
€ 23,95
€ 19,79
Artikelnummer
LRS7515
- ArtikelnummerLRS7515
- MerkMEANWELL
- Aantal 3+ € 22,75 € 18,80
| Features |
| • Enclosed case, screw terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Low profile • Safety standards: EN 62368-1 • EMC standards: EN 55032 Class B and more • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...373V DC | |
| Input Inrush Current, Max.: | 65A |
| Leakage Current, Max.: | 0,75mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 110...150% |
| Withstand Voltage | |
| I/P-O/P: | 3750V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 1250V AC |
| Operating Temperature: | -30...+70°C |
| Operating Altitude, Max.: | 5000m |
| Weight: | 300g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| LRS-75-5 | 5 | 0...14 | 70 | 2 | 100 | 86,5 |
| LRS-75-12 | 12 | 0...6 | 72 | 1 | 120 | 89 |
| LRS-75-15 | 15 | 0...5 | 75 | 1 | 120 | 89 |
| LRS-75-24 | 24 | 0...3,2 | 76,8 | 1 | 150 | 90 |
| LRS-75-36 | 36 | 0...2,1 | 75,6 | 1 | 200 | 91,5 |
| LRS-75-48 | 48 | 0...1,6 | 76,8 | 1 | 200 | 91,5 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
