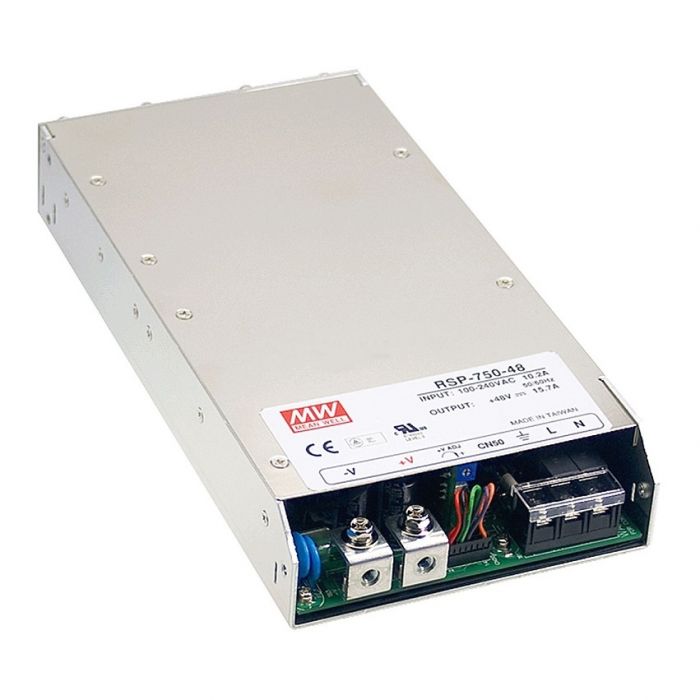

GESCHAKELDE VOEDING SINGLE OUTPUT 753W 48V/15.7A
€ 259,00
€ 214,05
Artikelnummer
RSP75048
- ArtikelnummerRSP75048
- MerkMEANWELL
- Aantal 3+ € 246,04 € 203,34
Features
| • Enclosed case, built-in fan, screw terminals • Universal input • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Low profile • Built-in remote On/Off control • Built-in remote sense function • DC OK signal • Built-in auxiliary power 5V/0,5A • Trimming function for output voltage and output current between 40...110% by 2...5,5VDC external voltage |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...264V AC (47...63Hz) |
| 127...370V DC | |
| Input Inrush Current, Max.: | 40A |
| Leakage Current, Max.: | 2mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 105...125% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 1640g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| RSP-750-5 | 5 | 0...100 | 500 | 2 | 150 | 82 |
| RSP-750-12 | 12 | 0...62,5 | 750 | 1 | 150 | 87 |
| RSP-750-15 | 15 | 0...50 | 750 | 1 | 150 | 89 |
| RSP-750-24 | 24 | 0...31,3 | 751,2 | 1 | 150 | 90,5 |
| RSP-750-27 | 27 | 0...27,8 | 750,6 | 1 | 150 | 90,5 |
| RSP-750-48 | 48 | 0...15,7 | 753,6 | 1 | 150 | 92 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
