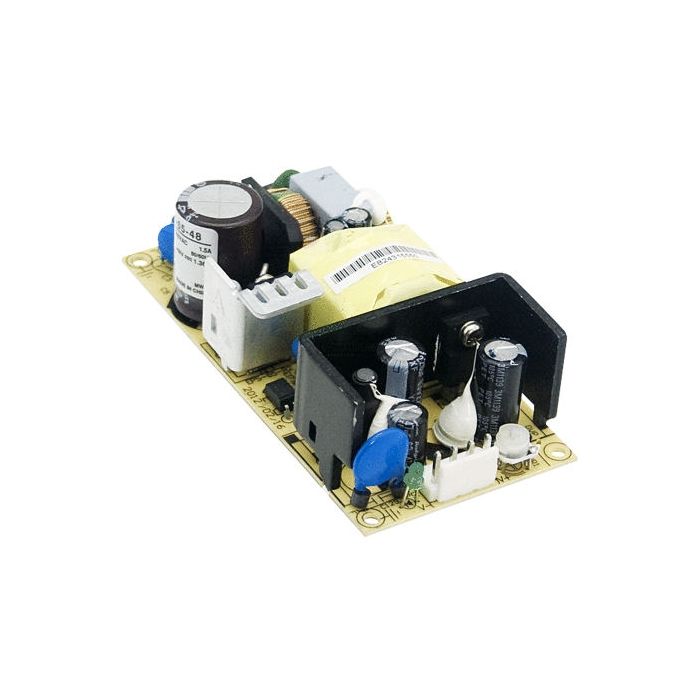

GESCHAKELDE VOEDING SINGLE OUTPUT 63W 15V/4.2A
€ 21,95
€ 18,14
Artikelnummer
EPS6515
- ArtikelnummerEPS6515
- MerkMEANWELL
- Aantal 3+ € 20,85 € 17,23
Features
• Compact case, 4" x 2" • Contact pin for nylon-crimp terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Low no load power consumption • Safety standards: EN62368-1 • EMC standards: EN55032 Class B, EN61000-3-2 • 3 years manufacturer warranty • EPS-65_: Open frame • EPS-65_-C: Enclosed type |
Technical Specifications |
Input Voltage: | 90...264V AC (47...63Hz) |
127...370V DC | |
Input Inrush Current, Max.: | 60A |
Leakage Current, Max.: | 2mA |
Over Load Protection: | 115...160% |
Withstand Voltage | |
I/P-O/P: | 3000V AC |
I/P-FG: | 2000V AC |
O/P-FG: | 500V AC |
Operating Temperature: | -30...+70°C |
Weight: | 150g |
I/P = Input, O/P = Output, FG = Frame Ground |
|
Part Nr. | UA | IA | PA | DUA | URN | h |
[V] | [A] | [W] | [%] | [mVp-p] | [%] | |
EPS-65-3.3 | 3,3 | 0...12 | 36,3 | ±3 | 80 | 80 |
EPS-65-3.3-C | 3,3 | 0...12 | 36,3 | ±3 | 80 | 80 |
EPS-65-5 | 5 | 0...12 | 55 | ±2 | 80 | 82 |
EPS-65-5-C | 5 | 0...12 | 55 | ±2 | 80 | 82 |
EPS-65-7.5 | 7,5 | 0...8,8 | 60 | ±2 | 100 | 84 |
EPS-65-7.5-C | 7,5 | 0...8,8 | 60 | ±2 | 100 | 84 |
EPS-65-12 | 12 | 0...6 | 65,04 | ±2 | 120 | 86 |
EPS-65-12-C | 12 | 0...6 | 65,04 | ±2 | 120 | 86 |
EPS-65-15 | 15 | 0...4,8 | 65,1 | ±2 | 150 | 87 |
EPS-65-24 | 24 | 0...3 | 65,04 | ±1 | 240 | 88 |
EPS-65-24-C | 24 | 0...3 | 65,04 | ±1 | 240 | 88 |
EPS-65-36 | 36 | 0...2 | 65,16 | ±1 | 280 | 89 |
EPS-65-36-C | 36 | 0...2 | 65,16 | ±1 | 280 | 89 |
EPS-65-48 | 48 | 0...1,36 | 65,28 | ±1 | 300 | 90 |
EPS-65-48-C | 48 | 0...1,36 | 65,28 | ±1 | 300 | 90 |
UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency |
