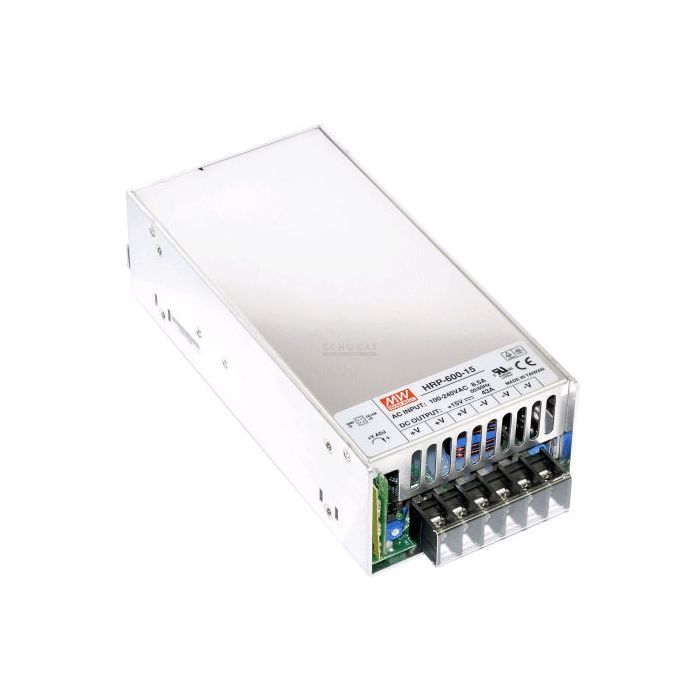

GESCHAKELDE VOEDING SINGLE OUTPUT 600W 7.5V/80A
€ 189,00
€ 156,20
Artikelnummer
HRP60007
- ArtikelnummerHRP60007
- MerkMEANWELL
- Aantal 3+ € 179,55 € 148,39
| Features |
| • Enclosed case, built-in fan, screw terminals • Universal input • Withstands 300V AC surge input for 5s • Overload protection, current limiting, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Built-in cooling On/Off control • Long life 105°C electrolytic capacitors • Built-in remote sense function • DC OK signal |
 |
|
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...370V DC | |
| Input Inrush Current, Max.: | 70A |
| Leakage Current, Max.: | 1,2mA |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -40...+70°C |
| Weight | |
| HRP-600: | 1500g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h= Efficiency
| Part Nr. | UA | IA | PA | Uadj | DUA | URN | h |
| [V] | [A] | [W] | [V] | [%] | [mVp-p] | [%] | |
| HRP-600-3.3 | 3,3 | 0...120 | 396 | 2,8...3,8 | 2 | 100 | 78,5 |
| HRP-600-5 | 5 | 0...120 | 600 | 4,3...5,8 | 2 | 100 | 82 |
| HRP-600-7.5 | 7,5 | 0...80 | 600 | 6,8...9 | 2 | 100 | 87 |
| HRP-600-12 | 12 | 0...53 | 636 | 10,2...13,8 | 1 | 120 | 88 |
| HRP-600-15 | 15 | 0...43 | 645 | 13,5...18 | 1 | 150 | 88 |
| HRP-600-24 | 24 | 0...27 | 648 | 21,6...28,8 | 1 | 150 | 88 |
| HRP-600-36 | 36 | 0...17,5 | 630 | 28,8...39,6 | 1 | 200 | 89 |
| HRP-600-48 | 48 | 0...13 | 624 | 40,8...55,2 | 1 | 240 | 89 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency |
