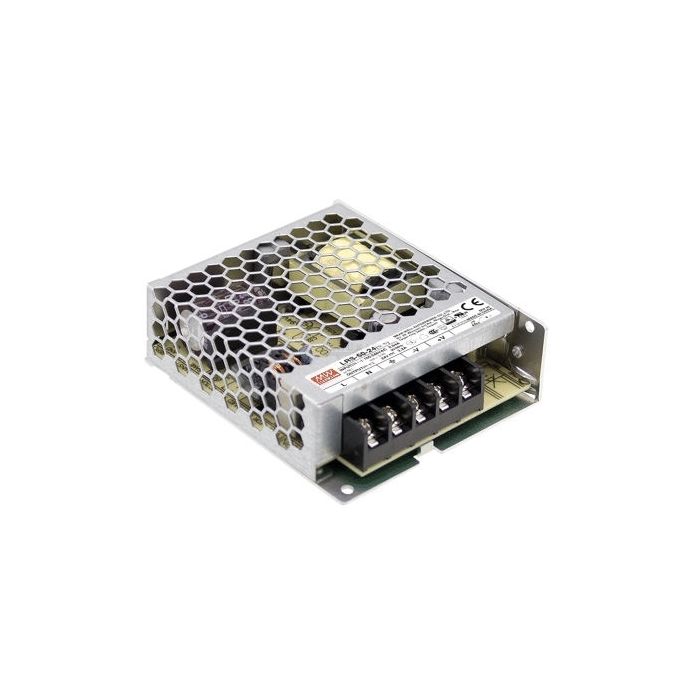

GESCHAKELDE VOEDING SINGLE OUTPUT 50W 24V/2.2A
€ 19,95
€ 16,49
Artikelnummer
LRS5024
- ArtikelnummerLRS5024
- MerkMEANWELL
- Aantal 3+ € 18,95 € 15,66
Features
| • Enclosed case, screw terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Low profile • Safety standards: EN 62368-1 • EMC standards: EN 55032 Class B and more • 3 years manufacturer warranty |
 |
| Technical Specifications |
|
|
| Input Voltage: | 85...264V AC (47...63Hz) |
| 120...373V DC | |
| Input Inrush Current, Max.: | 45A |
| Leakage Current, Max.: | 0,75mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 110...150% |
| Withstand Voltage | |
| I/P-O/P: | 3750V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 1250V AC |
| Operating Temperature: | -30...+70°C |
| Operating Altitude, Max.: | 5000m |
| Weight: | 230g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| LRS-50-3.3 | 3,3 | 0...10 | 33 | 3 | 80 | 80 |
| LRS-50-5 | 5 | 0...10 | 50 | 2 | 80 | 83 |
| LRS-50-12 | 12 | 0...4,2 | 50,4 | 1 | 120 | 86 |
| LRS-50-15 | 15 | 0...3,4 | 51 | 1 | 120 | 88 |
| LRS-50-24 | 24 | 0...2,2 | 52,8 | 1 | 150 | 88 |
| LRS-50-36 | 36 | 0...1,45 | 52,2 | 1 | 200 | 89 |
| LRS-50-48 | 48 | 0...1,1 | 52,8 | 1 | 200 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficienc | ||||||
