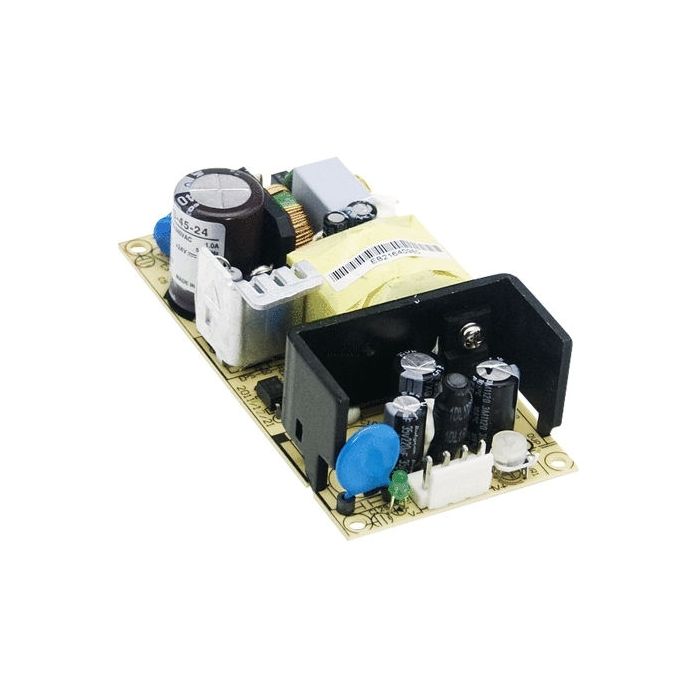

GESCHAKELDE VOEDING SINGLE OUTPUT 45W 24V/1.9A
€ 22,95
€ 18,97
Artikelnummer
EPS4524
- ArtikelnummerEPS4524
- MerkMEANWELL
- Aantal 3+ € 21,80 € 18,02
Features
| • Compact case, 4" x 2" • Contact pin for nylon-crimp terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Low no load power consumption • Safety standards: UL62368-1, EN62368-1 • EMC standards: EN55032 Class B and more • 3 years manufacturer warranty • EPS-45-_: Open frame |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...264V AC (47...63Hz) |
| 127...370V DC | |
| Input Inrush Current, Max.: | 60A |
| Leakage Current, Max.: | 2mA |
| Over Load Protection: | 115...160% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -30...+70°C |
| Weight | |
| EPS-45-_: | 140g |
| I/P = Input, O/P = Output, FG = Frame Ground | |
|
|
| Part Nr. | UA | IA | PA | DUA | URN | h |
| [V] | [A] | [W] | [%] | [mVp-p] | [%] | |
| EPS-45-3.3 | 3,3 | 0...8 | 26,4 | 3 | 80 | 80 |
| EPS-45-5 | 5 | 0...8 | 40 | 2 | 80 | 82 |
| EPS-45-7.5 | 7,5 | 0...5,4 | 40,5 | 2 | 100 | 84 |
| EPS-45-12 | 12 | 0...3,75 | 45 | 2 | 120 | 87 |
| EPS-45-15 | 15 | 0...3 | 45 | 2 | 150 | 88 |
| EPS-45-24 | 24 | 0...1,9 | 45,6 | 1 | 240 | 89 |
| EPS-45-36 | 36 | 0...1,25 | 45 | 1 | 280 | 89 |
| EPS-45-48 | 48 | 0...1 | 48 | 1 | 300 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | ||||||
