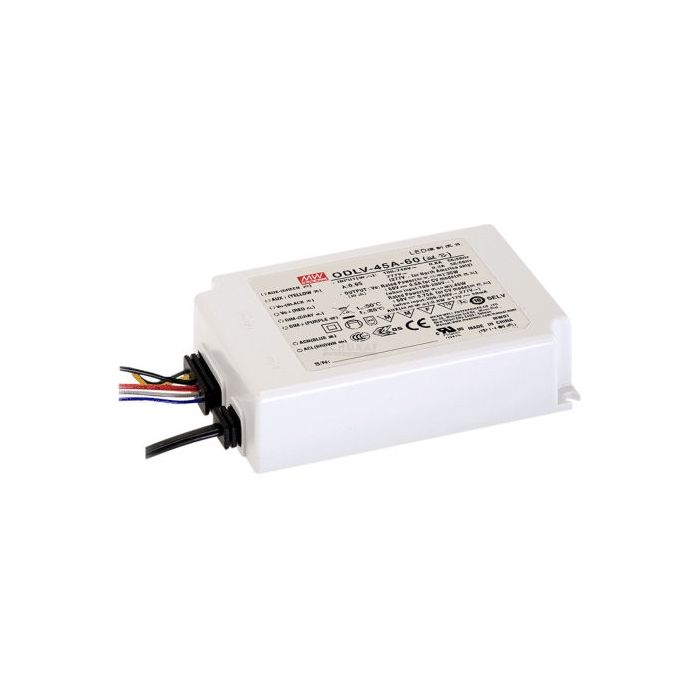

GESCHAKELDE VOEDING SINGLE OUTPUT 45W 24V/1.88A DIMBAAR
€ 27,95
€ 23,10
Artikelnummer
ODLV4524
- ArtikelnummerODLV4524
- MerkMEANWELL
- Aantal 5+ € 26,55 € 21,94
| Features |
| • Independent control gear • Plastic housing IP67 • Overload protection by shutdown, auto recovery • Protected against short circuit, overload • Built-in PFC circuit • Low no-load power • For LED and lighting applications • Fixed output voltage • PWM output 1kHz • Safety standards: EN61347-1 and others • EMC standards: EN55015, EN61000-3-2, Class C and others • 3 years manufacturer warranty • ODLV-45_: 2 in 1 dimming function (0...10V DC and 10V PWM) • ODLV-45_A: dimmable version and auxiliary voltage output |
 |
| Technical Specifications |
|
|
| Input Voltage: | 90...295V AC (47...63Hz) |
| 127...417V DC | |
| Input Inrush Current, Max.: | 30A |
| No-load power, less than | |
| ODLV-45_: | 0,5W |
| Withstand Voltage (I/P-O/P): | 3750V AC |
| Operating Temperature: | -20...+85°C |
| Dimensions(LxWxH): | 111x77x28,5mm |
| Weight: | 420g |
| I/P = Input, O/P = Output |
|
|
|
| Part Nr. | UA | IA | PA | DUA | h |
| [V] | [A] | [W] | [%] | [%] | |
| ODLV-45A-12 | 12 | 3 | 36 | 10 | 84 |
| ODLV-45A-24 | 24 | 1,88 | 45,12 | 10 | 86 |
| ODLV-45-36 | 36 | 1,25 | 45 | 10 | 88 |
| ODLV-45A-36 | 36 | 1,25 | 45 | 10 | 88 |
| ODLV-45-48 | 48 | 0,94 | 45,12 | 10 | 88 |
| ODLV-45A-48 | 48 | 0,94 | 45,12 | 10 | 88 |
| ODLV-45-60 | 54 | 0,75 | 45 | 10 | 90 |
| ODLV-45A-60 | 54 | 0,75 | 45 | 10 | 90 |
| UA = Output Voltage, IA = Output Current, PA = Output Power, DUA = Output Voltage Tolerance, h = Typ. Efficiency | |||||
