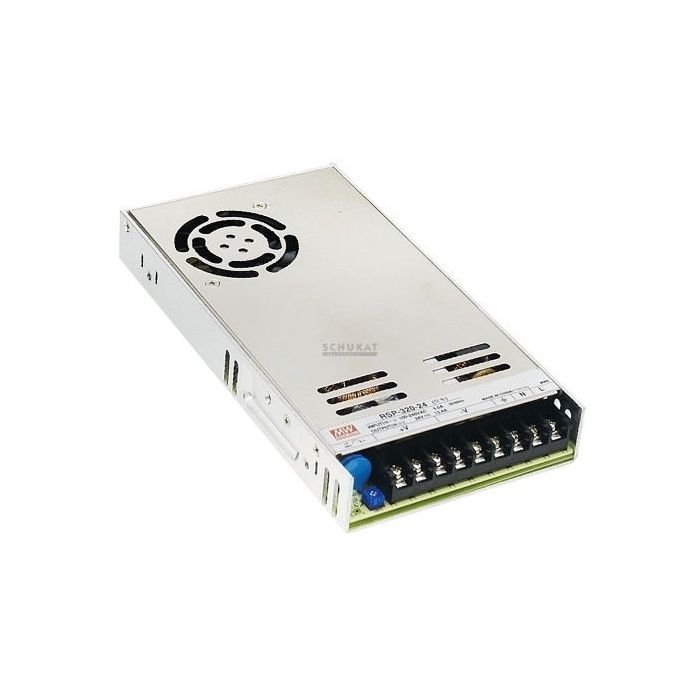

GESCHAKELDE VOEDING SINGLE OUTPUT 300W 24V/13.4A
€ 69,95
€ 57,81
Artikelnummer
RSP32024
- ArtikelnummerRSP32024
- MerkMEANWELL
- Aantal 3+ € 66,44 € 54,91
Features
| • Enclosed case, built-in fan, screw terminals • Universal input • Overload protection, pulsing hiccup shutdown, auto recovery • Protections: short circuit/over load/over voltage • Built-in active PFC function • Low profile |
 |
| Technical Specifications |
|
|
| Input Voltage: | 88...264V AC (47...63Hz) |
| 124...370V DC | |
| Input Inrush Current, Max.: | 40A |
| Leakage Current, Max.: | 1mA |
| Output Voltage Adjustment: | ±10% |
| Over Load Protection: | 105...135% |
| Withstand Voltage | |
| I/P-O/P: | 3000V AC |
| I/P-FG: | 2000V AC |
| O/P-FG: | 500V AC |
| Operating Temperature: | -30...+70°C |
| Weight: | 900g |
| I/P = Input, O/P = Output, FG = Frame Ground |
|
|
|
| Part Nr. | UA | IA | PA | URN | h |
| [V] | [A] | [W] | [mVp-p] | [%] | |
| RSP3202.5 | 2.5 | 0...60 | 150 | 100 | 75,5 |
| RSP3203.3 | 3.3 | 0...60 | 198 | 100 | 79,5 |
| RSP3204 | 4 | 0...60 | 240 | 100 | 81 |
| RSP3205 | 5 | 0...60 | 240 | 150 | 83 |
| RSP3207.5 | 7.5 | 0...40 | 300 | 150 | 88 |
| RSP32012 | 12 | 0...26,7 | 320,4 | 150 | 88 |
| RSP32013.5 | 13,5 | 0...23,8 | 321,3 | 150 | 88 |
| RSP32015 | 15 | 0...21,4 | 321 | 150 | 88,5 |
| RSP32024 | 24 | 0...13,4 | 321,6 | 150 | 89 |
| RSP32027 | 27 | 0...11,9 | 321,3 | 200 | 89 |
| RSP32036 | 36 | 0...8,9 | 320,4 | 220 | 89,5 |
| RSP32048 | 48 | 0...6,7 | 321,6 | 240 | 90 |
| UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency | |||||
